Industrial Warehouse Storage Heavy Duty Steel Stacking Tyre Rack

Product Description

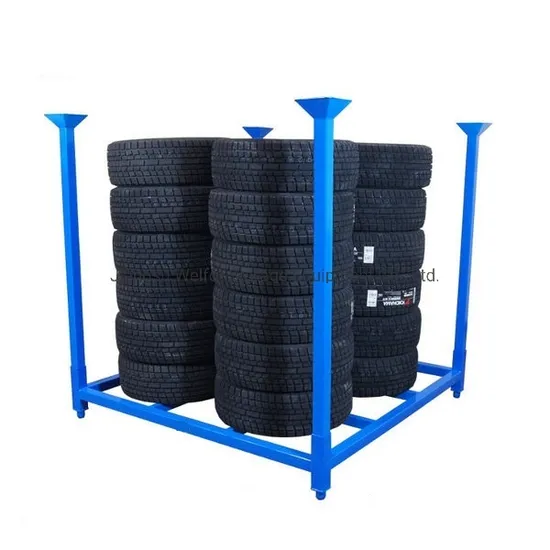

Warehouse Storage Heavy Duty Steel Stacking Tyre Rack
Welfor stacking rack of tyres is about obtaining the maximum amount of tyre storage in the available space without affecting the quality of the tyre - while ensuring efficient and ergonomic handling, through all the seasons.
The Stacking Rack system is ideal for tyres and smaller warehouses with manual handling.
The basis of the system is uprights and shelves made from highgrade powder coated steel. These can be folded and stacked to save space.
Features A. Welded metal structure, strong and durable
B. Demountable, easy to assemble
C. Can be stacking 4 high, folded to store and save space
D. Load capacity up to 1000kg
E. Improve product visibility
F. Four removable upright to save space
Specification
Size: Length x Width x Height
any sizes can be tailored to meet requirement
Loading Capcity: 300 - 1200KG
Stacking Capacity: 4-5 Layers
Folding and stacking design
Powder coating finishing
Optional: Forklift pocket
Optioanl: Wire mesh bottom
Optional color: Blue, Orange, red, yellow.
Technicial data for stacking rack

Feature of Tire racking
Material	High quality hot rolled steel. Q235b (equivalent to S235JR according to DIN EN10025 and Gr. D according to ASTM A283M)
Surface treatment:	Powder coated.
Size(LxWxH)	40" x40" x40" , 60" x60" x60" , 72" x72" x72
Thickness	2.0mm
Loading capibility (per layer)	800-1000kg (2200lb)
Stacked capacity	4 layers
Packing detial:	Bundled tightly with plastic belts.
Delivery detial:	20 workdays after received the deposits.

Production process
Packing and loading photos
Please provide information for quick quotation
1. Pallet Size (Length*Width*Loading Height in mm)
2. Layout or Dimension (Length*Width*Net Height in mm) of your warehouse
3. Rack Size (Length*Width*Depth in mm) if you are available or we shall design for you
4. How many bays and levels if available
5. Loading Capacity(kg) of each level or each pallet
FAQ
1, What is MOQ limitation for rack system?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2, What is the lead time
++ As per 20FT container loading, manufacture time is about 10-15 days; Regarding some customized items 20-25 days will be covered.
3, What is payments methods you can accept?
++ T/T and L/C are welcomed.
4, How about your sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5, What is warranty for your rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
