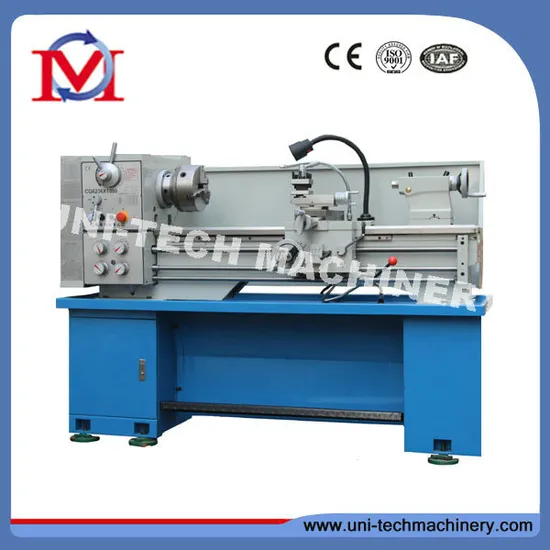

Torno Lathe Machine Universal Mechanical Precision Mini Lathe Machine Cq6230A
| US$2,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CQ6230A
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
CE
Swing Over Bed Dia.
310mm
Bed Length
750/910/1000mm
Spindle Bore
38mm
Max. Swing Over Gap
450mm
Distance Between Centers
750mm/910mm/1000mm
Width of Bed
181mm
Taper of Spindle Bore
M.T.5
Range of Spindle Speeds
0.011-0.276mm/Rev
Max. Travel of Top Slide
75mm
Max. Travel of Tailstock Quill
100mm
Transport Package
Wooden Case
Specification
CE, ISO9001
Trademark
UNITECH
Origin
China
HS Code
84591900
Production Capacity
150PCS /Month
Product Description
Universal Mechanical Precision mini Lathe machine Cq6230AFeature: > Precision ground and supersonic frequency hardened bed ways.
> The spindle is supported with precision roller bearing.
> Headstock gears are made of high quality steel, ground and hardened
> Removable gap is provided for larger diameter work
> Easy operating gear box has various feeds and thread cutting function
ModelCQ6230A
Max.swing over bedΦ310mm
Max.swing over cross slideΦ180mm
Max. swing over gapΦ450mm
Distance between centers750mm/910mm/1000mm
Width of bed181mm
Spindle boreΦ38mm
Taper of spindle boreM.T.5
Range of spindle speeds65-1810(1400)rpm
Taper of tailstockM.T.#3
Metric threads can be cut0.4-7mm
Inch threads can be cut4-60 T.P.I.
Range of longitudinal feeds0.0527-1.2912mm/rev
Range of cross feeds0.011-0.276mm/rev
Max. travel of cross slide130mm
Max. travel of top slide75mm
Max. travel of tailstock quill100mm
Motor power1.1KW.3PH/1.5KW.1PH
Standard accessories:3 Jaw chuck(Φ160mm),Change Gears Set,M.T.#3 Dead Centers,M.T.#5/3 Reduction Sleeve,Oil gun,Splash Guard,Foot stands,Tool Box&Tools,Oil Tray
Optional accessories:4 Jaw chuck(Φ200mm),Face Plate,Steady Rest,Follow Rest,Work Light,Foot Brake System,Coolant System,Live Center,Drill Chuck+Drill Arbor,Leadscrew Guard,Chuck Guard,Localizer,Clutch For Feed Rod,Quick Change Tool Post,Digital Readout(2 Axis)
| Model | CQ6230A |
| Max.swing over bed | Φ310mm |
| Max.swing over cross slide | Φ180mm |
| Max. swing over gap | Φ450mm |
| Distance between centers | 750mm/910mm/1000mm |
| Width of bed | 181mm |
| Spindle bore | Φ38mm |
| Taper of spindle bore | M.T.5 |
| Range of spindle speeds | 65-1810(1400)rpm |
| Taper of tailstock | M.T.#3 |
| Metric threads can be cut | 0.4-7mm |
| Inch threads can be cut | 4-60 T.P.I. |
| Range of longitudinal feeds | 0.0527-1.2912mm/rev |
| Range of cross feeds | 0.011-0.276mm/rev |
| Max. travel of cross slide | 130mm |
| Max. travel of top slide | 75mm |
| Max. travel of tailstock quill | 100mm |
| Motor power | 1.1KW.3PH/1.5KW.1PH |
| Standard accessories: | Optional accessories: |
| 3 Jaw chuck(Φ160mm) | 4 Jaw chuck(Φ200mm) |
| Change Gears Set | Face Plate |
| M.T.#3 Dead Centers | Steady Rest |
| M.T.#5/3 Reduction Sleeve | Follow Rest |
| Oil gun | Work Light |
| Splash Guard | Foot Brake System |
| Foot stands | Coolant System |
| Tool Box&Tools | Live Center |
| Oil Tray | Drill Chuck+Drill Arbor |
| Leadscrew Guard | |
| Chuck Guard | |
| Localizer | |
| Clutch For Feed Rod | |
| Quick Change Tool Post | |
| Digital Readout(2 Axis) |
