Taiwan T6 CNC Drilling Tapping Machine with CE Certification
Basic Info.
Model NO.
T6
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Spindle Taper
Bt30
Spindle Motor
5.5kw
System
Syntec/Mitsubishi/Fanuc/Siemens
Max Load
300kg
Name
CNC Drilling Tapping Machining Center
X/Y/Z Speed
48/48/48 M/Min
Tool Alignment
Auto Tool Checking
Working Table
700*400
Precision
+-0.005/300mm
Repeat Precision
+-0.003mm
Power
5.5kw 380V 3 Phase
Spindle Speed
20000 Rpm
Max Working Speed
10m/ Min
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Mold
Type
3 Axis CNC Machine
Transport Package
Sea Worthy Plywood Case
Specification
1880*2600*2700
Trademark
WT
Origin
Dongguan City China Prc
HS Code
8459619000
Production Capacity
2000PCS/Year
Product Description
BT40 High-Speed Metal CNC Drilling Cutting Machine Vertical Drilling Milling Machining CenterProduct Description
T640 is a high-speed drilling and tapping center machine tool, which adopts mechatronics design, beautiful appearance, and can be used for precision cutting. After the workpiece is clamped once, the machine tool can automatically and continuously complete the processing of various processes such as milling, drilling, boring, expanding, reaming, countersinking, and tapping. This machine is suitable for multi-variety processing of complex parts such as medium and small boxes, plates, discs, shells, etc. It is widely used in 3C products, IT equipment, optical equipment, medical equipment, and aluminum alloy products.
Product Paramenters
| Item | Unit | T-540 | T-640 | T-1065 | T-1365 | T-1600 |
| Journey | ||||||
| Three-axis travel (X/Y/Z) | mm | 500/400/300 | 600/400/300 | 1000/650/300 | 1300/650/300 | 1600/500/300 |
| Distance from spindle centerline to column guide surface | mm | 466 | 466 | 716 | 716 | 516 |
| Distance from spindle nose to work table | mm | 150-450 | 150-450 | 150-450 | 150-450 | 150-450 |
| Workbench | ||||||

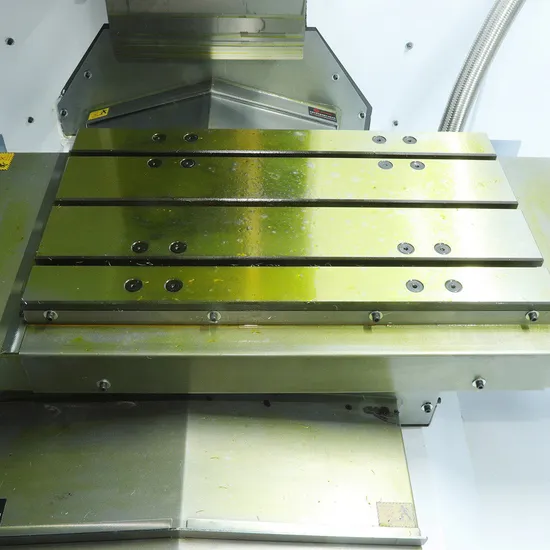

| Table size (length X width) | mm | 650X400 | 700/400 | 1100X650 | 1400X650 | 1700X400 |
| Maximum load | kg | 300 | 300 | 450 | 450 | 450 |
| Number of T-slots X Slot Width X Spacing | 3X14X121 | 3X14X120 | 51X4X120 | 51X4X120 | 3/14/121 | |
| Spindle | ||||||
| Spindle speed | rpm | 20000 | 20000 | 20000 | 20000 | 20000 |
| Spindle taper hole | BT30 | BT30 | BT30 | BT30 | BT30 | |
| Spindle motor power | kw | 3.7/5.5 | 3.7/5.5 | 3.7/5.5 | 3.7/5.5 | 3.7/5.5 |
| Speed | ||||||
| Rapid traverse speed (X/Y/Z axis) | m/min | 48/48/48 | 48/48/48 | 30/48/48 | 30/48/48 | 30/48/48 |
| Cutting feed rate | m/min | 10/10/10 | 10/10/10 | 10/10/10 | 10/10/10 | 10/10/10 |
| Tool magazine | ||||||
| Number of tools | pcs | 21 | 21 | 21 | 21 | 21 |
| Tool diameter/length/weight | Ф60mm/200mm/3kg | Ф60mm/200mm/3kg | Ф60mm/200mm/3kg | Ф60mm/200mm/3kg | Ф60mm/200mm/3kg | |
| The maximum diameter of the tool (full knife / adjacent empty knife) | mm | 60/80 | 60/80 | 60/80 | 60/80 | 60/80 |
| Machine tool accuracy | ||||||
| Positioning accuracy (X/Y/Z) | mm | 0.008 | 0.008 | 0.01 | 0.01 | 0.012 |
| Repeated positioning accuracy (X/Y/Z) | mm | 0.005 | 0.005 | 0.006 | 0.006 | 0.008 |
| Other | ||||||
| Air source/air pressure | 280L/min6-8bar | 280L/min6-8bar | 280L/min6-8bar | 280L/min6-8bar | 280L/min6-8bar | |
| Total capacity of machine tools | KVA | 15 | 15 | 15 | 15 | 15 |
| Tank volume | L | 160 | 160 | 220 | 220 | 230 |
| Machine tool dimensions (X/Y/Z) | mm | 1880X2600X2700 | 1880X2600X2700 | 2700/3220/2900 | 3300X3220X2900 | 3850X2680X2700 |
| Machine Weight (Approx.) | kg | 3200 | 3300 | 4000 | 4400 | 4100 |
