US$20,000.00-22,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Tube Machine Type
Presses
Layers of Roll Paper
2 - 8
Reelpipe Speed
40-55m/Min
Wall Thickness of Paper Tube
10 - 15mm
Transport Package
Wooden Package
Specification
5600 x1600 x 1750 mm
Production Capacity
100sets/Month
Product Description
DAKIOU ZGJ-D Paper Drink Tube Machine
DAKIOU ZGJ-D Paper Drink Tube Machine, suitable for small diameter (6-12 mm) paper straw. It concludes 6 units: unwinding, gluing, stretching, twisting paper, cutting, and collecting. Different size of paper straw making can be fulfilled by changing the size of stainless steel core.
TYPE | ZGJ-D |
Winding Speed | 30-45 m/min |
Suitable Material | Width and weight Surface paper-15mm ; 60g Middle paper-14mm 120g Bottom paper-13.5mm 120g |
Number of roller | 3 Layer |
Tube | Diameter : 6-12 mm Wall-thickness: 0.3-1 mm |
Cutting Length | 100-800 mm |
Cutter | 5 sets |
Twisting Head | 2sets |
Working Air Pressure | 0.6 Mpa |
Overall Dimension | 5600 x1600 x 1750 mm |
Working Space | 11000 x6000 x 2000 mm |
power source | 380V //3Phase/ 50HZ |
Weight | 2000KGS |

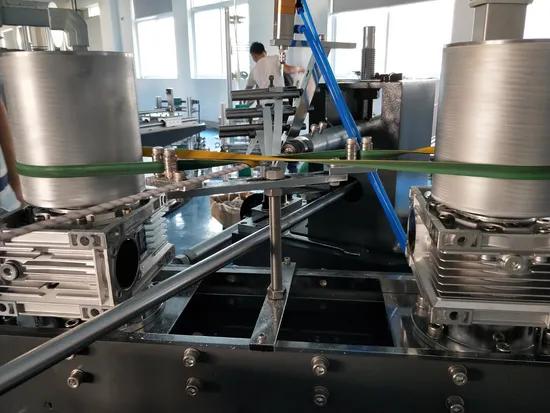

Machin Display:
Paper Straw Display:
