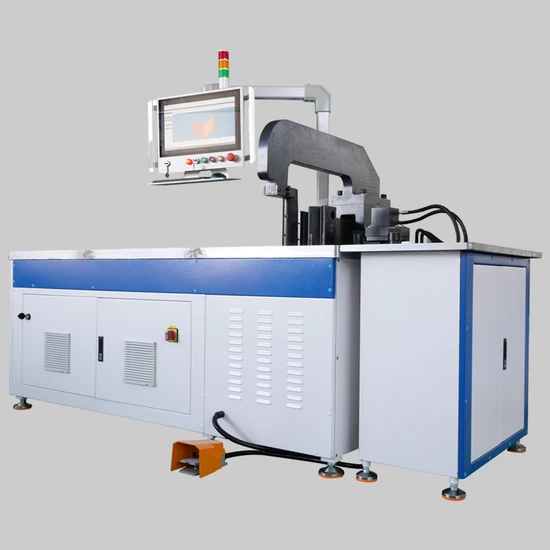

Intelligent 3D Busbar Bending Machine with Windows Screen
| US$1.00-10,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
EMAC-BB-H12
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Copper, Aluminum
Type
Cnc Bending Machine
S;Outside Dimension
4150 X1590 mm
Norminal Force
400 Kn
Level Bending
200 *15
Vertical Bending
125 * 15
Transport Package
Export Standard Free-Fumigation Wooden Case
Specification
Total Weight: 2700kg
Trademark
BEIENE
Origin
Shandong, China
Production Capacity
200 Sets Per Month
Packaging & Delivery
Package Size
224.00cm * 160.00cm * 150.00cm
Package Gross Weight
260.000kg
Product Description
Video link:https://cncmachinegroup.en.made-in-china.com
Products Description:
Advantages:
1. Whole-Shipment Design,No need any on-site installing and awarded National Appearance Design Patents
2. Smartbend 3D Busbar Bending Program Software
3. Simulate Busbar Bending Give Correct Bending Sequence Automatically
4. Hybrid: Patented Servo Motor Drived Hydraulic Station Eco and Green Tech Built In
5. Standard Free Flat (Level Bending) Punch and Vee Die (Radius can be customized)
6. Automatic Edgewise(Vertical) Bending Tools ( Radius can be customized )
7. With optional Tools ( Roll twisting toll, Dent-free bending die, Electronic Spring-back die, Z type bending tool, U type bending tool, etc)
Dent-free bending Die
Electronic Spring-back die
Specification
| Item | Unit | Parameter |
| Nominal Force | KN | 400 |
| Bender Accuracy | Degree | ±0.2 |
| Max Bending Stroke | mm | 250 |
| Stroke of X | mm | 1200 |
| Max Motion Speed of Side Striker(X Axis) | m/min | 80 |
| Bending Head (Y Axis) | m/min | 0-5 (Hybrid Control) |
| Min Inner Width of U-shape Bend | mm | 40 (Note:Please consult us for smaller dimensions) |
| Max Bending Angle | degree | 90 |
| Bending Capacity (W*H) | mm | 200 × 15 |
| Total Power | kw | 8 |
| Main Machine Dimension: L*W | MM | 2600X 1500 |
| TOTAL Weight | kg | 2600 |
| Control Section | |||||
| Serial No. | Name | Brand Name | |||
| 1 | Programmable Control | SIEMENS | |||
| 2 | Sensor | SIEMENS | |||
| 3 | Control Button | SIEMENS | |||
| 4 | All-in-one Industrial Computer | BEIENE | |||
| 5 | |||||
| 6 | AC Contactors | SIEMENS | |||
| 7 | Circuit Breaker | SIEMENS | |||
| 8 | Servo Motors | SIEMENS | |||
| 9 | Servo Drivers | SIEMENS | |||
| 10 | Control software and Three-dimensionalcomputer-aided design | Update BRCAD | |||
| Transmission System | |||||
| Serial No. | Name | Brand Name | |||
| 1 | Precision Straight rail | Taiwan HIWIN | |||
| 2 | Precision Ball Screw | Taiwan HIWIN | |||
| 3 | Bearing | Japan NSK | |||
