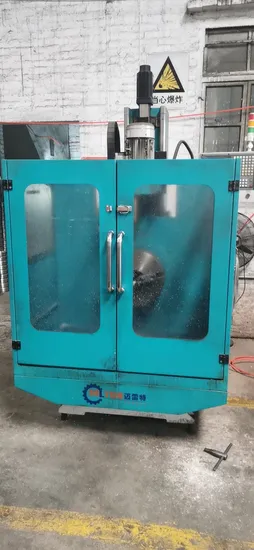

CNC Roller Shell Drilling Machine (MLT-WZ400)
| US$5,999.00-19,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MLT-WZ400
Structure
Horizontal Drilling Machine
Layout
Horizontal
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
5-13mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine Weight
900kg
Spindle Speed
0-5000rpm
Position Accurcy
0.02mm
Maximal Ring Die Outer Diameter
850mm
Minmum Ring Die Inner Diameter
350mm
Transport Package
Wooden Case
Specification
1620mmx1200mmx2100mm
Trademark
MLTOR
Origin
China
Production Capacity
10000/Year
Product Description
1-spindle of CNC pellet feeding roller shell drilling machineTechnical description
1. Ring die hole drilling and repair machine.
2.Supplement of the gun drill processing,ring die hole decompression.
3.With a torque detaction function,automatic indentification and skip of the blind hole or hole blocking.
4.Single spindle or double spindle can be optional,unique protection,can process wooden pellet ring die and feeding pellet ring die.
5.Specialized drilling system MLT-Z208.Mature hardware and software system,use-friendly,intuitive interface,stable performace,no programming,the relevant parameters of the hole through the CNC system interface can be filled.
6.MLT series of motors,with anti-oil,engage in corrosion and so on.
Parameter description
| MLT-WZ4000W main configuration | |||
| Item | Processing Detail | Figure | Remarks |
| 1 | Maximal Outer diameter | Ø600mm | |
| 2 | Minimum Inner diameter | Ø180mm | |
| 3 | Hole drilling size | Ø5~13mm | |
| 4 | Maximal Width | 420mm | |
| 5 | Spindle speed | 100-2500rpm | |
| 6 | Forward & backward travel range | 420mm | |
| 7 | Positioning accuracy | 0.02 | |
| 8 | Feeding motor | X/Y/Z full servo motor | |
| 9 | Language | English | |
| 10 | NC control system | Z208i | |
| 11 | Machine net weight | ~1000kg | |
| 12 | Machine size | 1620mm x 1200mm x 2100mm | |
