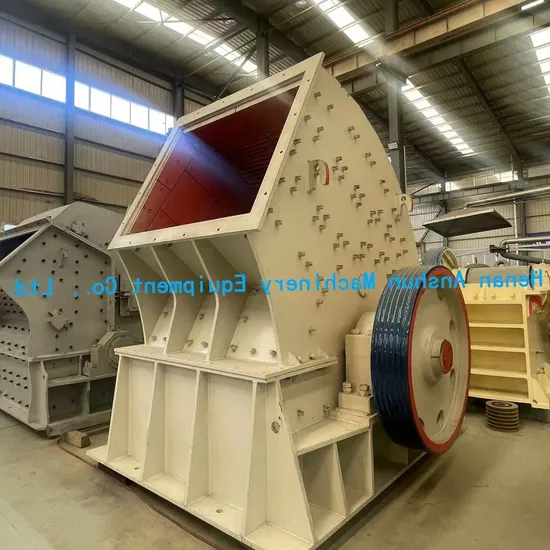

Construction Waste Recycling Concrete Waste Heavy-Duty Hammer Crusher

Product Description

Product Introduction
The PC series heavy-duty hammer crusher is a new type of crusher developed based on the PC series crusher, based on user feedback information and the development trends of the crushing industry, and combined with our company's experimental data. Compared with other hammer crushers, the alloy composite hammer head has significant features such as high hammer head wear resistance, large rotational inertia, and high rotor kinetic energy. It has the characteristics of large feed particle size, high crushing ratio and low maintenance cost. With an output of 50 tons to 5,000 tons per hour, this series of crushers is becoming the first choice equipment in the crushing industry.
Specifications and Performance Parameters

Model	Rotor Diameters Length(mm)	Feed Inlet Size (mm)	Processing Capacity (t/h)	Motor Power (kw)	Dimensions (mm)
PC1213	1200×1280	1350×920	300-350	160×2	2970×2580×2510
PC1216	1200×1590	1530×920	400-500	200×2	3070×2840×2580
PC1220	1220×1950	2000×920	500-600	220×2	3080×3380×2580
PCZ1308	1310×790	850×800	100-160	132	2818×2155×2388
PCZ1510	1500×950	1000×900	160-210	132×2	3260×2414×2750
PCZ1512	1500×1160	1200×900	250-320	160×2	3260×2624×2750
PCZ1615	1650×1452	1500×1200	420-500	200×2	3667×2937×3436
PCZ1620	1660×1900	2000×1200	800-1000	400×2	3667×3200×3436
PCZ1820	1800×1964	2000×1200	1000-1200	450×2	3700×3270×3515

Performance characteristics:1. This heavy hammer crusher has the characteristics of high output, low energy consumption, simple structure and convenient maintenance.
2. Compared with the jaw crusher of the same output, it can reduce equipment investment, with low investment and quick results.
3. The machine adopts a grate-free design, which eliminates the problem of blockage and adhesion for wet materials and crushing raw materials with high soil content.
4. The machine adopts an alloy composite hammer head, which reduces the consumption of wear parts and reduces production costs by about 35%.
Applicable materials
medium and fine crushing of hard and medium hard rocks such as quartz, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, bluestone, etc.
Company Profile
Henan Anshun Machinery Equipment Co., Ltd. is a modern enterprise engaged in the research and development, production, sales and service of equipment in the fields of mining crushing, building crushing, tower sand making, etc. It is the first unit to pass the ISO9001 quality certification system, the EU CE certification unit, and an enterprise with the right to import and export. Over the years, the company's products have been sold well throughout the country and exported to Vietnam, North Korea, Central Africa and the Middle East countries and regions. The company's after-sales service team is spread all over the world. The complete after-sales service management system has been recognized and praised by the industry, and is well-known at home and abroad, becoming a shining pearl in my country's mining machinery manufacturing industry.Packaging & Shipping
Certifications
FAQ
Support:We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.After-sales service support :After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.Technological support :ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.
