US$150.00-350.00
|
1 Piece
(MOQ)
|
Basic Info.
Operation
by Air Actuator
Polish
Internal 0.8 Micrometer
Gasket
EPDM/Silicone/Viton/FPM
Size
DN10-DN300, 1/2′′-304′′
Material
Stainless Steel 304,316L
Connection Type
Weld,Clamp,Thread,Flange
Keyword
Proportional Adjustment Butterfly Valve
Product Name
Proportional Adjustment Butterfly Valve
Transport Package
Carton/Plywood Case
Specification
DIN/SMS/3A/ISO/IDF
Origin
Wenzhou, Zhejiang, China
Production Capacity
200, 000PCS
Product Description

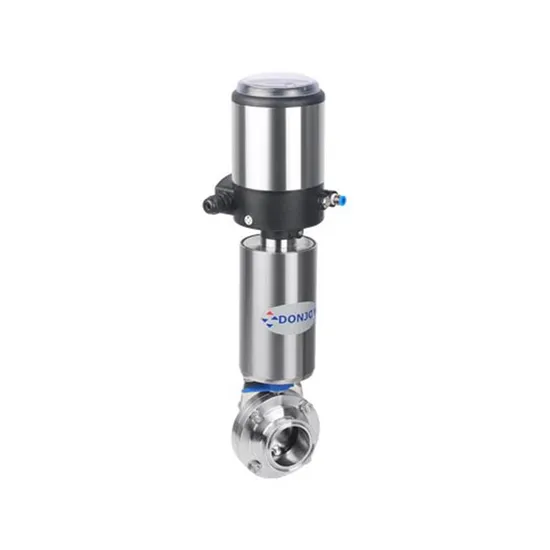

3A Sanitary Single Acting Pneumatic Butterfly Valve with Positioner Control
Specification:
Product Name: | 3A Sanitary Single Acting Pneumatic Butterfly Valve with Positioner Control |
Valve Body Material: | SS304/SS316L |
Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
Max working pressure: | 10Bar |
Availably size: | DN10-DN300, 1/2"-12" |
Max temperature | 120 ÂșC |
Availably connection: | Clamp / weld / thread/ weld thread/ flange |
Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
Operated: | Manual,Pneumatic,Electric |
Control: | Sensor, C-TOP, C-top controller(AS-I) |
Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
Actuator application: | Stainless steel actuator/ Horizontal pneumatic actuator |
Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
Packaging Details: | Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. |
Control | Sensor, C-TOP, c-top controller(AS-I) |
Actuator | Pneumatic stainless steel actuator, pneumatic aluminum actuator, electric actuator |
Delivery d etails: | Usually within 20 days after receiving T/T down payment |
Hygienic Double Acting Pneumatic Butterfly Valve with C-top
Feature:
1.Donjoy manufacture more than 27 years,which means we had upgraded and optimized many times,solve the problem in advance to ensure best performance and best application.
2.Manufactured more than 3millions pcs
3.Forged body,one time CNC machining, guarantee machining precision.
4.Euro imported gasket,meet FDA standard.
5.With hundreds of options for butterfly valve,manual type.
6.Have certificate of FDA,3-A ,CE.
Connection:
Clamped, welded and threaded,flanged etc.
Packaging Details:
Bubble pack for each valve.
Outside packing is by carton or plywood case.
Delivery details:
Usually within 20 days after receiving T/T down payment.
If you have any inquiry, please leave message below and "Click Send "
