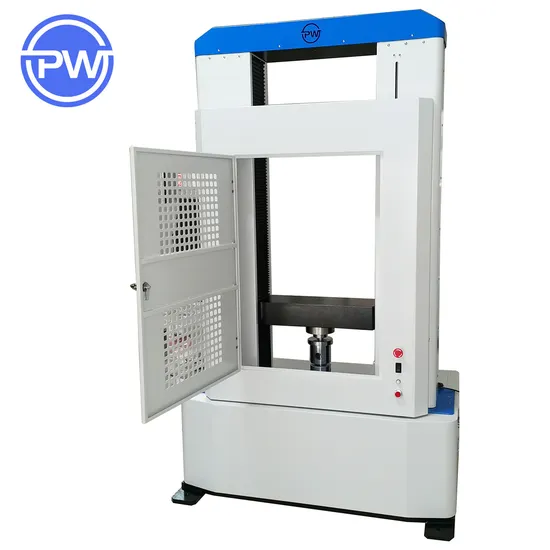

Microcomputer Controlled Electronic Universal Material Tensile Testing Machine

Microcomputer Controlled Electronic Universal Material Tensile Testing Machine

US$15,000.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PW-UD200
Max Diameter of Workpiece
<500mm
Mass Scope of Workpiece
<900kg
Type
Universal Testing Machine
Maxcapacity
<1000KN
Accuracy Grade
0.5
Load Way
Electronic Load
Loading Method
Dynamic Load
Display
Digital
Control
Computer Control
Weight
100-500Kg
Power Source
AC220V
Oil Cylinder Position
Under
Control Method
Microcomputer Servo Control
Power Resolution
1/500, 000
Effective Stroke
700mm; (Customizable)
Power
2kw
Transport Package
Strong Wooden Case
Specification
GB/T16491; GB/T1040; GB/T1041; ISO, ASTM
Trademark
PW
Origin
Dongguan, China
HS Code
8514109000
Production Capacity
1000pieces/Year

Packaging & Delivery

Package Size
126.00cm * 76.00cm * 212.00cm
Package Gross Weight
1200.000kg

Product Description

Product Description
It is widely used in the tensile, compression, peeling, tearing, bending and other physical damage tests of rubber, plastics, polymer materials, metals, textiles, steel, and other products and semi-finished products.

Features
1. Powerful test function, with different fixtures, it can carry out a variety of test requirements to meet the needs of users.
2. The software has more powerful functions. Various test results and test curves can be displayed and automatically marked in the interval. It can be upgraded at any time to realize positioning shift, fixed force, fixed time, repeated fatigue testing, etc.
3. The design of the machine is beautiful, generous, easy to operate, and the software has strong scalability and high accuracy.
4. Servo motor drive, high precision ball screw drive, low failure rate and simple maintenance.

Product Parameters
Item PW-UTM200K1
Capacity (MAX) 200KN (optional 10N~200KN range force sensor)
Control mode full computer control mode, powerful software function
Power unit N, kN, gf, kgf, lbf, kP, tf (SI), tf (long), etc.
Length unit mm, cm, Inch, m, km, um, etc.
Power resolution 1/500,000;
Accuracy ±0.1%
Travel resolution 1/500,000mm
Accuracy ±0.1%
Effective stroke 700mm; (customizable) 1200mm; (customizable)
Speed range 0.01~500mm/min; (customizable)
Test space 420mm left and right (customizable)
Shutdown mode overload shutdown, emergency stop button, automatic shutdown of specimen damage, automatic shutdown of upper and lower limit settings
Machine power Servo motor drive
Machine size 1267×761×2119mm (W×D×H)
Net weight of machine About 1200KG
Power 2KW
Power supply 220V 50~60HZ
Machine equipment 1 USB communication line, 1 software
Optional accessories tensile fixture, compression fixture, etc.;
(purchase different fixtures according to different test standards)

Company Profile
Company Introduction:
PW (Guangdong) Instruments Co., Ltd. was established in March 2007, a national high-tech enterprise, located in Tongzheng Intelligent Industrial Park, No. 2, North 3rd Road, Tingshan Square, Houjie Town, Dongguan City, Guangdong Province. Through years of operation, the company has gathered a group of talents with considerable qualifications in the industry, and has accumulated a large number of high-quality customers. In order to better serve customers in East China, the company established PW Instruments (Shanghai) Co., Ltd. in Shanghai and set up an instrument exhibition hall and testing center in Suzhou Industrial Park.
Corporate Culture:
Vision: Become a world-renowned instrument manufacturer
Mission: Provide customers with high-quality testing equipment
Values: Customer satisfaction is our aim.

Certifications

FAQ
Q: Are your company a trading one or a factory?A: Factory, More than 15 years focusing on test equipment field, 10 years exporting experience.Q: After an order is placed, when to deliver?A: Generally about 10-25 days, If we have inventory, we can arrange shipment within 3 days.Please be aware that our production lead times depend on specific items and item quantities.Q: What about the warranty with after-sales services?A: The testing machine is guaranteed for 12 months by PW, we can help you to repair your problem controller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handle guest problems and complaints in a professional and timely.Q: What about the product's services and quality?A: Each piece of equipment must be carried out 100% quality examination and test when shipping and delivering goods. Product use training, each of our products provides video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.A: Considerate Service Different countries plugs, manually change the voltage from 110V to 220V, insurance indicator.Q: Can your products be customized?A: Yes, our product can be customized according to your parameters.
