Durable High Strength Chevron Conveyor Belt for Heavy Duty Applications

Product Description

Product Description:

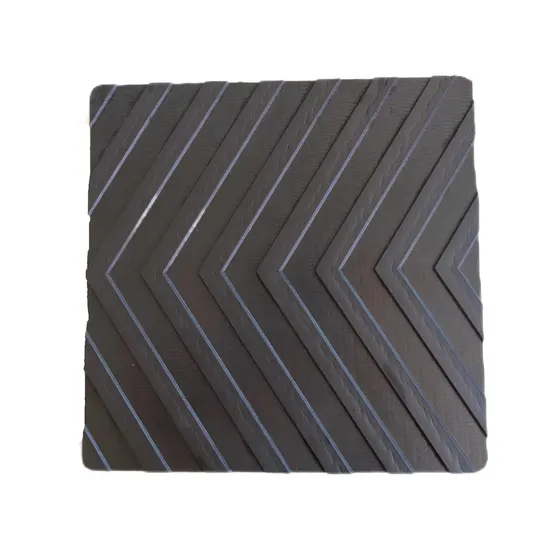

"DONGXUMING" Chevron conveyor belt is designed according to the highest standards in the industry. The chevron conveyor belt is an inclined conveyor belt composed of the covering rubber with a pattern working surface and the covering rubber with a flat non-working surface and the core. There is a "person" font pattern higher than the belt body on the surface, but the pattern is also closed, and each pattern can be divided into high, middle and low three kinds. Widely used in mining, coal yard, chemical industry, metallurgy, construction, port and other scenes.
Product Features:
-Core material: ordinary cotton canvas (CC), polyester cotton mixed woven canvas (CP), nylon (NN), polyester (EP), etc
-Breadth: 300mm-800mm
-Height of anti-slip rubber strip:5mm-20mm(Note: The pattern shape can be designed according to user requirements.)
-It is suitable for conveying materials with an inclination of 0-40° to prevent materials from sliding
-easy installation and maintenance Manufacturing standa:
GB/T7984, MT/T914, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc
Product application:
Suitable for long-distance, large capacity, used in mining, quarrying, chemical plants, construction industry etc
Product Parameters:

Fabric specs	Ply thickness (mm/p)	Strength series (N/mm)					Cover Thickness (mm)		Width	Length
		2ply	3ply	4ply	5ply	6ply	Top	Bottom	mm	m
EP80	0.60	160	240	320	400	480	2.0 - 8	0 - 4.5	400 - 2500	≤300
EP100	0.75	200	300	400	500	600
EP150	1.00	300	450	600	750	900
EP200	1.10	400	600	800	1000	1200			500 - 2500
EP250	1.25	500	750	1000	1250	1500
EP300	1.35	600	900	1200	1500	1800
EP350	1.45		1050	1400	1750	2100			800 - 2500
EP400	1.55			1600	2000	2400			1000 - 2500
EP500	1.70			2000	2500	3000

Fabric specs	Ply thickness (mm/p)	Strength series (N/mm)					Cover Thickness (mm)		Width	Length
		2ply	3ply	4ply	5ply	6ply	Top	Bottom	mm	m
NN-100	0.75	200	300	400	500	600	1.5 - 8	0 - 4.5	400 - 1500	≤300
NN-150	0.8	300	450	600	750	900
NN-200	0.9	400	600	800	1000	1200			500 - 1500
NN-250	1.15	500	750	1000	1250	1500
NN-300	1.25		900	1200	1500	1800
NN-400	1.45			1600	2000	2400			800 - 1500
NN-500	1.55			2000	2500	3000

Product detailed photos:

· Hebei Dongfeng Rubber Belt CO.,LTD ·
Hebei Dongfeng Rubber Belt Co., Ltd., established in 1980, is a comprehensive high-tech enterprise integrating R&D, production, and sales of various conveyor belt products.The company has garnered certifications including Quality Management System (QMS), Environmental Management System (EMS), Occupational Health and Safety Management System (OHSMS), as well as Mining Product Safety Mark Certification.
It operates within a 30-acre facility, boasting a robust technical staff of 60, including one senior engineer and five senior technicians, with a total of ten professional technical personnel. The company maintains ten large-scale production workshops, such as rubber refining, weaving, rolling, molding, vulcanization, power, and machinery repair, equipped with approximately 20 sets of state-of-the-art tape production equipment.It continuously introduces new technologies and equipment to meet the evolving demands of the industry. Currently, the production capacity reaches ten million square meters, supported by the company's on-site verification facilities.
It continuously introduces new technologies and equipment to meet the evolving demands of the industry. Currently, the production capacity reaches ten million square meters, supported by the company's on-site verification facilities.The company's products are characterized by superior performance, with the coal mine flame retardant belts showcasing properties such as flame resistance, anti-static, impact resistance, tear resistance, anti-delamination, and extended lifespan, highly regarded in the coal industry. These products find extensive application in sectors such as coal, metallurgy, cement, electric power, building materials, chemicals, and food.
Product Quality Inspection:
More production & products details:
FAQ:
Q1. Are you a manufactuer?
Yes, we produce Rubber conveyor belts and conveyor rollers over 44 years.
Q2. What is the lead time?
10 days for bulk order production.
30 days for container order production.
If urgent,we have green channel.
Q3. How to pay?
1. T/T or L/C through bank account
Q4. How about package?
1. Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2. Outer is packed with one ply water-proof PP fabric
3. With steel pallet on the bottom
