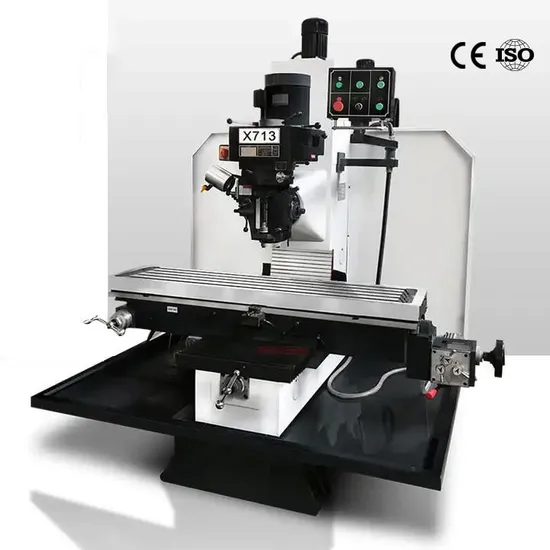

High Accuracy Metal Bed Type Drilling Milling Machine X713
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
X713
Type
Worktable Milling Machine
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Size (Width)
14mm
Centre Distance
80mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84596990
Product Description
| Bed-type Milling Machine |
| Specifications | X713 |
| Table size | 1525x320mm |
| T slot | 3 |
| Size (Width) | 14mm |
| Centre distance | 80mm |
| Max. load of Table | 600kg |
| Longitudinal travel | 1050mm |
| Cross travel | 470mm |
| Vertical travel | 500mm |
| Spindle taper | ISO40 |
| Quill travel | 127mm |
| Spindle speed /step | 70-3620/10rpm |
| Spindle axis to column surface | 450mm |
| Spindle nose to table surface | 70-570mm |
| Longitudinal/cross feed | X:20-1200mm/min/Variable Y:Manual |
| Vertical | 1200/1 |
| Longitudinal/cross rapid speed | X:1200mm /min Y:Manual |
| Rapid Traverse vertical | 1200 |
| Main motor | 3.7kw |
| Feed motor | 0.4kw |
| Elevating motor for headstock | 0.37kw |
| Coolant motor | 0.04kw |
| Package dimension | 201x190x225cm |
| Max.table load | 600kg |
| Overall dimension | 256.5x192x229cm |
| N/W | 2500kg |
| Standard Accessories | Optional Accessories |
| Milling chuck | Digital readout system |
| Spindle arbor | Clamping kit |
| Sleeve | Dividing head device |
| Ring spanner | Vice |
| Inner hexagon spanner | ER Series Mill Chuck Sets |
| Drilling chuck | Rotary table |
| Drawbar | Spindle guard |
| Machine Worklamp | 7HP Milling head |
| Coolant system | |
| CE electrical cabinet | |
| 5HP Milling head | |
| X axis inverter drive | |
| Z axis elevating motor |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
