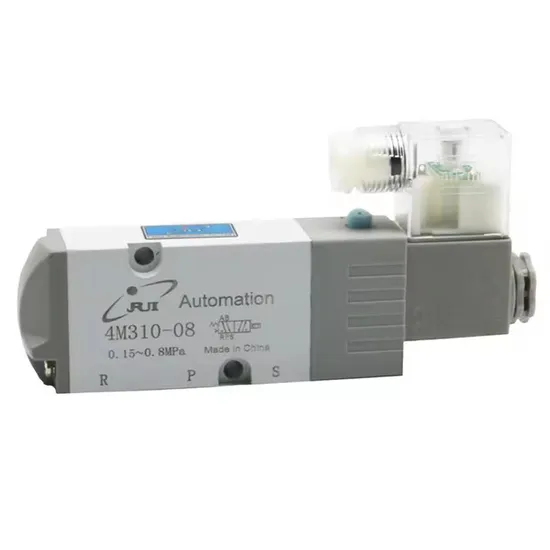

1/4′′ 4m310-08 5/2 Way 5 Port 2 Position Namur Interface Pneumatic Actuator Air Control Solenoid Valve
| US$4.80 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
4M310-08
Actuator
Pneumatic
Connection Form
Thread
Type
Direct Acting
Material
Aluminum
Pressure
0.15~0.8MPa
Valve Structure
Direct-Acting Piston Structure
Power Supply
AC/DC
Usage
Safety, Emptying, Drain, Temperature Control, Flow Control
Standard
DIN
Application
Industrial Usage, Water Industrial Usage, Household Usage
Coil Insulation &Protection Grade
Class F.IP65
Coil Type
Flying Leads/DIN Type
Transport Package
1. Logo Standard Cartons 2.White Carton Box Withou
Trademark
Jery
Origin
China
Production Capacity
50000 Piece/Pieces Per Month
Product Description
Features:1. Internally piloted structure.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Double control solenoid valves have memory function.
4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5. No need to add oil for lubrication.
6. Install in the side plate with the surface upward, which can be used by directly connecting with the actuators.
7. Affiliated manual devices are equipped to facilitate installation and debugging.
8. Several standard voltage grades are optional.
| Model | 4M110-M5 4M120-M5 | 4M110-06 4M120-06 | 4M210-06 4M220-06 | 4M210-08 4M220-08 | 4M310-08 4M320-08 | 4M310-10 4M320-10 | 4M410-10 4M420-10 |
| Working Medium | Clean air (40μm filteration) | ||||||
| Operation | Internal Guide | ||||||
| Port Size | Import=M5 Export=M5 | Import=1/8 Export=1/8 | Import=1/8 Export=1/8 | Import=1/4 Export=1/8 | Import=1/4 Export=1/4 | Import=1/4 Export=3/8 | Import=3/8 Export=3/8 |
| Sectional Area | 5.5mm² (CV=0.31) | 12mm² (CV=0.67) | 14mm² (CV=0.78) | 16mm² (CV=0.89) | 25mm² (CV=1.39) | 30mm² (CV=1.67) | 30mm² (CV=1.67) |
| Working Pressure | 0.15~0.8MPa | ||||||
| Max. Working Prressure | 1.2MPa | ||||||
| Working Temperature | -5~60ºC | ||||||
| Voltage Range | -15%~10% | ||||||
| Heat Resistance Grade | B Grade | ||||||
| Protection Grade | IP65(DIN40050) | ||||||
| Coil Type | Flying Leads/Din Type | ||||||
| Max. Acting Frequency | 4 Time/S | ||||||
