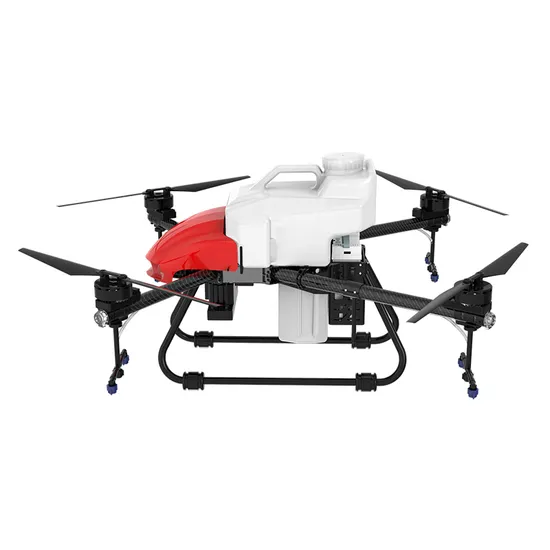

High Quality 25L Remote Control Pesticide Spray Drone for Agriculture

Product Description

Competitive price powerful motor agriculture spraying drone 4 axis gyro
- OEM & ODM Service -
Product Description

The U25L-4 integrates a number of cutting-edge Brouav technologies, including a Radar Sensing System that provides additional reliability during flight. The spraying system and flow sensor ensure accurate operations. When used with the Intelligent Operation Planning System and the UNID Agriculture Management Platform,a user can plan operations, manage flights in real-time, and closely monitor aircraft operating status. The U25L-4 is a high performance aircraft capable of offering comprehensive solutions for agricultural care.
Product Specifications

Model	U25L-4
Product material	Aviation carbon fiber + aviation aluminum
Product expansion size	2010mm*1980mm*750mm
Product folding size	1310*1280*750mm
Packaging size	1410*1300*780mm
Maximum takeoff weight	51KG
Aircraft weight	19 KG Excluding Battery
Pesticide Barrel	25L
Flight altitude	≤30 meters
Fly time(unloaded)	6~20 minutes
Fly time(loaded)	6~10minutes when fully loaded
Flight speed	1-10 m / sec
Structure lift span	≥10 years
Spray width	4-8 meters
Hovering in the air	Hovering in any direction
Spray flow	3-8 L/min
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~500μm
Fly control	Industrial Version GPS and Controller
Spray efficiency	≥12hectares / hour
Safe takeoff and landing wind speed	≤5
Motor speed	5000rpm
Power system	60.9V power polymer computer battery
Charer	AC Input 100-240V
Lithium-polymer battery	20000mAh*1

Features
1. The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system and provide safety guarantee for long-term operation;2. The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight function, which can well maintain the spray height and spray route accuracy of the operation;3. The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system has good atomization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of strong penetration. Leaf face.4. Modular design of functional components, easy maintenance and upgrade.5. Using intelligent plug-in battery6. Use quick-plug medicine barrel7. High-pressure brushless water pump is adopted, and the ESC is fully waterproof.8. Wear the case, optimize the whole machine, and hide the medicine circuit.9. 7075 aviation aluminum (high grade) is used for the folding part.10. Alternating spraying function, the spray head can be switched independently.11. The arm can be quickly disassembled.
Don't puncture the battery. If the battery pack is drummed, there is a safety hazard. Especially when charging, the drum pack should be stopped immediately and the battery should be moved to a safe place.
