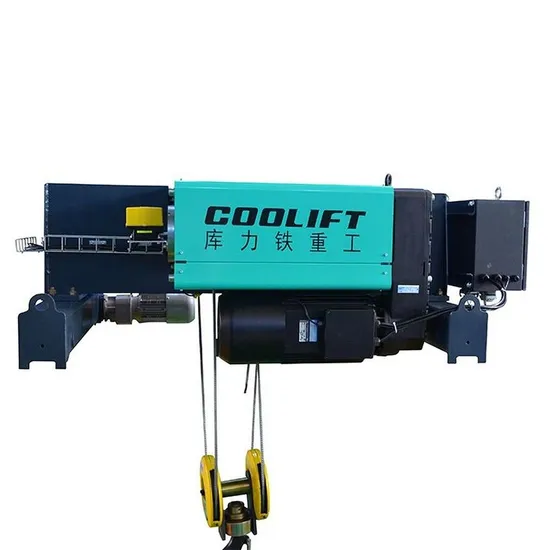

Cwh-10t-H18m Custom Double Girder Galvanized Steel Wire Rope Electric Car Hoist

Product Description

Product Description
Double Girder Hoist
Double Girder Hoist is a lifting equipment with a double-beam structure, which is usually used to lift heavy objects. Its double-beam design provides higher stability and load-bearing capacity, and can withstand loads of thousands of tons. Compared with single-beam cranes, double-beam cranes have significant advantages in capacity, span and hook height, and are particularly suitable for application scenarios that need to handle heavier loads and longer spans.
Double Girder Hoist adopts advanced design technology and high-quality components to ensure its efficient, safe and reliable operation. Double Girder Hoist has low operating noise, efficient operation monitoring and maintenance, and is equipped with a variety of safety protection functions, such as phase loss protection, anti-vibration contactor, etc. These features make Double Girder Hoist perform well in heavy industry and special applications, and can meet customers' strict requirements for quality and performance.
Double Girder Hoist is widely used in the mechanical processing industry, workshops, warehouses, and other places. Its modular design makes installation and maintenance more convenient, and its structure is lightweight, low cost, and high space utilization. Double Girder Hoist is particularly suitable for large-span and heavy-lifting projects, which can improve factory space utilization and save workshop costs.
We offer three configurations for you to choose from
High-level Configuration:
Lifting motor from Germany with the brand ABM, the electrical element and frequency converter from Schnei-der, and running motor from Germany with the brand Nord.
Standard Configuration:
Lifting motor from Germany with the brand ABM, electrical element from Schnei-der frequency converter from China, and running motor from China.
Basic Configuration:
Lifting motor from China(except DOUBLE GIRDER TYPE models which lift weight above 10t, using German ABM lifting motor), electrical element and frequency converter from China, and running motor from China.
Product Parameters

DOUBLE GIRDER HOIST SPECIFICATION
Product Name	Double Girder Electric Wire Rope Hoist
Keywords	Electric Hoist
Configuration	Standard Configuration
Specifications	10t 18m
Lifting Speed	0.8-5.0 m/min
Lifting Power	1.5/9.5 KW
Traveling Speed	5-20 m/min
Traveling Power	2x0.55 KW
FEM/ISO	2m/M5
Gross Weight	1200kg
Power Source	Electric
Quality Control	100% Inspection
MOQ	Low MOQ
Sample	Accept
OEM & ODM Custom	Accept
*The above data is for reference only.

Detailed Photos
SUPERIOR LOAD HANDLING CAPACITY
The Double Girder Hoist is designed with a double-beam construction, providing extra strength and stability, allowing it to handle heavier loads, making it ideal for heavy industrial applications such as steel mills or shipyards.
HIGH LIFTING CAPACITY
The Double Girder Hoist's hoist system is mounted on top of the bridge, which not only increases the hook height but also provides a greater working range. This feature is particularly advantageous in industries that require high lifting heights, such as warehouses, power plants, and aerospace facilities.
LONG SPANS AND WIDE-RANGE COVERAGE
The Double Girder Hoist is able to cover larger spans and provide better horizontal movement capabilities. Its double-beam construction enables it to handle longer bridge lengths while remaining stable, ensuring seamless operation in large industrial settings such as large factories, ports, and shipyards.
HIGH FLEXIBILITY
The Double Girder Hoist is highly flexible and can be customized to meet the needs of specific industries. It can be equipped with a variety of attachments such as magnetic lifters, grabs, or rotating trolleys to perform specialized tasks. This flexibility ensures that businesses can achieve maximum productivity.
SAFETY AND RELIABILITY
The lifting motor and drive motor are imported from Germany to ensure stable lifting operation and high reliability, the protection class is IP65, and the lifting mechanism brake lining life is up to 100 million times
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a professional manufacturer. We have our R&D team, factory, and marketing department.
Q2: How do you ensure product quality?
A2: All our processes strictly comply with ISO-9001 procedures, including material traceability, ISO WPQR and welder certificates, measurement equipment calibration, welding non-destructive testing, and comprehensive assembly and load testing before delivery.
Q3: How can I pay?
A3: We accept T/T bank transfers, letters of credit, and Paypal.
Q4: How can I assemble the crane in my factory?
A4: We recommend that you recruit a local crane service team to install the crane base according to our installation guide and user manual. If not, we can send engineers to your factory to guide you to installation, but it will cost extra, and the transportation, accommodation, and translation costs will also be borne by you.
Q5: Do you accept OEM business?
A5: Of course, we do many OEM productions for some famous crane brands and customers all over the world.
Q6: How about the delivery time?
A6: The estimated delivery time for different capacity cranes and components is different, generally speaking, it is about 4 weeks to 8 weeks.
