Automatic Liquid Pouch Filling Machine with Spouted Bag Servo Filling Capping

Product Description

Product Description Baoneng automatic liquid pouch filling machine with spouted bag servo filling capping, adopting servo pump filling and servo universal capping, is especially made for auto liquid, juice, milk, liquid detergent, shampoo lotion or paste packaging of various premade spouted bags, spouted pouches or spouted doypacks, which can auto finish pouch feeding, pouch quantitative servo filling, cap-feeding & servo capping & bag conveying out, widely used in foodstuff, drinks, chemicals & cosmetics fields.
Different types to meet different products, capacity and production needs, welcome to inquire.

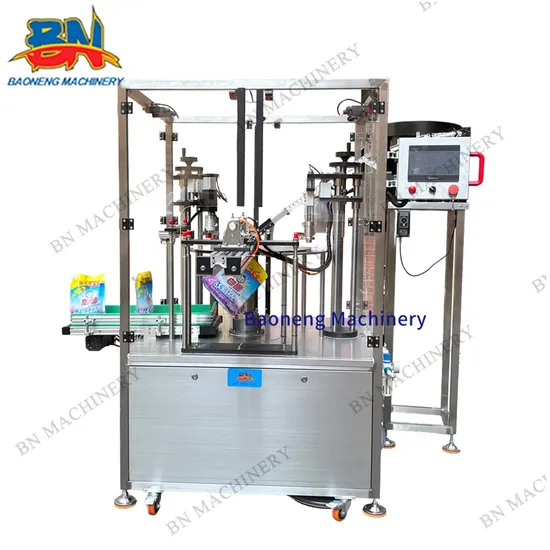

Automatic liquid spouted pouch servo filling capping machine with safety door and gear pump filling fyi (1-station running)

Automatic dual-station liquid spouted pouch servo filling capping machine with servo piston filling fyi
Main structure & process:
1.Pouch hanging & feeding
2.Servo gear pump filling, or Servo Piston filling, with high filling accuracy, suitable for liquid, or viscous liquid, cream filling, both foamy liquids and non-foamy products; no bag no filling,
(filling can be servo piston, or servo pump filling depends on materials to be filled)
3. Cap unscrambling & cap feeding
4.servo capping, with wide application, adjustable capping torqure, & perfect capping quality
5.Pouch exiting and conveying belt Detailed Photos spouted pouches bag feeding and liquid pump filling with safety hood cap detector and servo capping fyi pouch exiting and conveying belt fyi 1-station pouch servo filling capping monoblock with safety hood Main parameters:

Model	BNAFC-PR1	BNAFC-PR4
Filling scope	100-1000ml; 500-3000ml (customize)
Filling nozzle	1 nozzle (can be 2-nozzle)	4 nozzles
Capping head	1 head	4 heads
Filling principle	Servo Piston filling (based on different products to be filled, can be servo pump filling etc)
Capping	Servo capping (magnetic capping based on caps)
Cap/bottle size	Based on the actual samples
Capacity	15-20BPM	45-55BPM
Filling precision	≤±1%
Air pressure	0.5~0.7MPa
Voltage	220V 50/60HZ 1P

pouch filler with quality horizontal servo filling, universal, fast, accurate & easy to wash, maintain
Cream jam sauce lotion spouted pouch filling capping machine with servo filler & liquid hopper fyi
automatic spouted pouches 2-head liquid jam sauce paste servo filling capping monoblock
(high-performance, highly-efficient & cost-effective) fully-auto 4-head liquid/cream spouted pouch servo filling capping monoblock
spouted pouche liquid paste filling capping machine, professionally customize for different materials, speed, bags

Company Profile
Machines packaging before delivery fyi
Welcome to contact for mor details and visit us in Guangzhou China :)
Similar series for bag packaging machines reference:
Auto liquid cleaner/detergent/oil 4-head filling capping packing machine with acrylic glass hood fyi
Pouch/doypack liquid filling can be priming type; also filling can be designed with hopper for auto gel/paste/cream and equipped with material pump feeding for higher production efficiency
