Magnetic Stirring Stainless Steel Reactor for Biopharmaceutical Intermediates

Product Description

Purposes of AutoChem Stirred Reactors

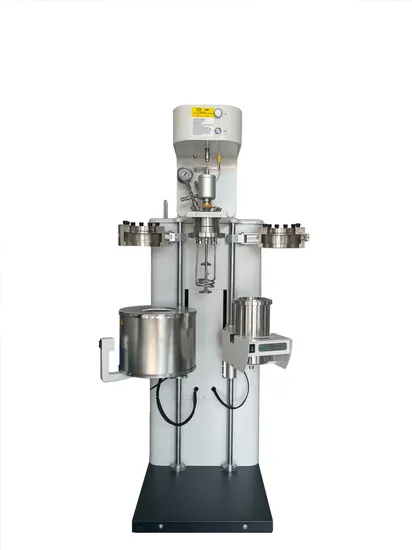

As a type of generalpurpose automatic reactor,it iswidely applied in substancepolymerization, decomposition,hydrothermal reaction, hydro-genation,supercritical reaction, pharmacy, substance dis-persion and other aspectsAlso, it can be used to store,collect and export experimen-tal data. Structure type:Bench typefixed-head reactor; with electriclift of reactor body; horizontallyrotating 90"left and right;
Machining process:the reactor's body and head, adopt inte.grated forging and bar cuttingprocess, to ensure they have nowelding points.
Driving mode:Mechanicalstirring, magnetic sealing; driv-ing motor stepless speed regu-ation,large torque,and themaximum rotationspeed0-1200 rpm;
Sealing mode: A-type doublethread sealing,high-temperatu.re sealing gasket,snap ring type sealing structure,non-flange type sealing mode;
Heating mode:Enclosed type heating furnace, electric lift,travel300mm, horizontally rotating 90°(left-right)
Reactor cover equipped
Stainless steel pressure gauge and safety valve/explosion valye:
Thermocouple and K-type thermocouple, used to determine reaction temperature;
Liquid sampling valve and gas injection valve, connected with the depth-determining tube, used for gas intake, liquid inlet and taking liquid material under pressure;
Gas release valve,used to totally vent qas in the reactor and to release the pressure;
Built-in cooling coil, used to reduce reactor temperature;
Stirring speed control and PlD/programmed temperaturecontrol system,
Automatic cooling module, PiD control module;Digital temperature display, with super-high temperatureprotection module;
Digital pressure display and overpressure sound-light alarmmodule, with pressure sensor, revolutions control and datadisplay module;
The whole machine carries MRSC-AUTO touch screen con-trol system, to realize temperature, revolutions, torque andtime control, as well as store and collect experimental data in-cluding temperature, revolutions, pressure, torque, time andalarms.
Series MRSC-AUTO HighPressure Reactor Systems
1. ldentity recognition system, hierarchical control;2.7-inch,high-brightness, TFT LCD touch screen; show-ing abundant and comprehensive information, no deadcorner in field of vision, displayed in graphs and text,vivid, easy and simple;
3.Staged programmed temperature control; multistage ex-periment condition temperature rise mode can be set;bran-new Al (Artificial Intelligence) algorithm, to realizeno-overshoot/no-undershoot control oncomplex andlong-time logged objects.
4.Real-time online curve display for pressure, tempera-ture, rotation speed and torque;5.Automatic storage of experimental data, self-prepareddata recording function; able to display real-time data andhistorical data; also, providing data recorded in the form ofreports and alarm recording function;6.Provide with export function via USB flash disk; thusdata can be further analyzed and processed on the com-puter; so that experimental data can be stored for a longtime and be used in papers and academic research;7.Timing function: There are two modes, namely constanttemperature timing and work timing;8.Power supply configuration:110 or 200-240V/AC50-60Hz. Select AutoChem Micro-Reactors

Detailed Photos Product Description As a high-pressure chemical reactor, the fully automatic microreactor is suitable for research and process control of high-temperature and high-pressure chemical reactions in various laboratories today. It is a traditional R&D and production equipment in the chemical industry, which can fully stir various chemical materials at high pressure and temperature to enhance mass and heat transfer processes. It has been widely used in research fields such as catalytic processes, catalyst preparation, petroleum, chemical, organic synthesis, polymer material polymerization, chemical conversion of food and biomass. Liquid liquid mixing, gas-liquid reaction, gas-liquid powder and other experimental systems. Technical parameters of reaction kettle Specification AC-100ML volume 100ML Design temperature 400ºC Operating temperature ≤350ºC accuracy:±1ºC Design Pressure 12.5MPa Work pressure ≤10MPa Material 316L stainless steel Cooling coil Yes Opening and closing method Quick opening snap ring seal Mixing method Propelling paddle, four bladed propeller Heating method Modular electric heating Heating power power:1.2KW Sealing mode Magnetic coupling static seal, high temperature resistant composite sealing gasket TYPE A double wire seal Electric lift Automatic lifting and lowering, lifting range: 300 mm, and 90 degrees left and right rotation Openg-ended system Kettle cover and kettle body separated, automatic lifting and opening Insulation model External heat preservation of the kettle chamber: the heat preservation cover is waterproof, corrosion resistant and not easy to rust. Heat preservation: the shell temperature is about 45ºC at 350ºC Kettle lip opening 8 ports, respectively: inlet, exhaust, stirring, temperature measurement, cooling cycle inlet, cooling cycle outlet, pressure measurement: safety relief, overpressure relief 12.5mpa, pressure sensor, Series MRSC-AUTO HighPressure Reactor Systems Control model 7 inches touch true color screen control, which can realize the laptop computer control, hierarchical control, temperature control module with 31 period of temperature programmed control, two-way internal and external temperature detection, pressure with the overpressure protection function display, temperature display with overtemperature protection function, with a power-off protection and leakage protection function, can online store experimental data memory and export printing. Motor type 220V AC R three-phase explosion-proo Motor power 80W-150W Rotational speed 0-1200 revolutions per minute Torque: 0.5 to 10 nm Inorganic speed Frequency control R Measurement temperature model K armoured thermocouple At the end of tube Close to bottom of kettle, with 5um filter Time ,Rotational and pressure display setup :Yes ; No Heating setting Manual adjustment + computer adjustment, intelligent temperature control program Heat up speed ≤6ºC/min Product Parameters Company Profile Our Advantages Packaging & Shipping FAQ Q1:Are you trading company or manufacturer? A1:We are professional manufacture of lab equipment and we have our own factory which is a high-tech enterprise integrating R&D, production and sales. And welcome to visit our factory. Q2: How long is your delivery time? A2: Usually, delivery time is 30-45 days after receiving your payment. Q3:How to shipping the replacement parts? A3:We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express. Q4: How about your quality warranty ? A4: Normally all SENLONG products are supplied with a warranty of 12 Months from the date of shipment. Q5:Can we visit your factory? A5: Welcome visit our factory. Q6:What is your terms of payment? A6:Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment. (If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Made in China. you will get 100% payment refund if we can't meet agreed delivery time.)
