Hand Operated Hoists with Good Material

Product Description

Products Description

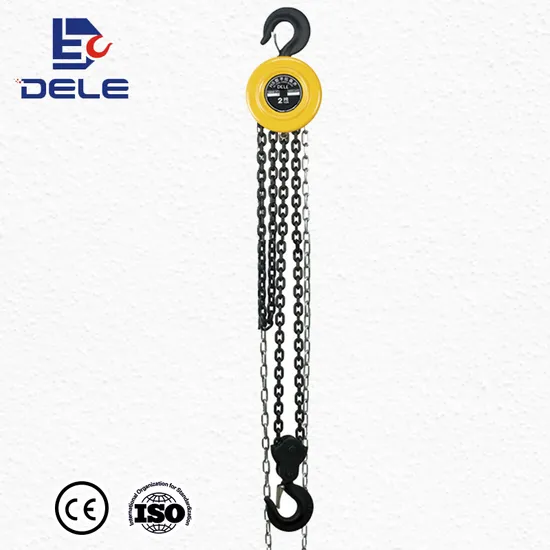

0.5ton-20ton hand chain pulley block round manaul chain lifting hoist
Capacity: 0.5T-20T
Thick friction discs; Safety latches.
Grade 80 load chain-made by wafios machine; Safe factor 4: 1.
More than 3 rounds inspections before export out, everyone will be inspected before delivery.
Excellent quality, top in China, always the leader.
Largest and best chain machine produce group in China, which imported from Wafios Germany and Italy.
Excellent after-sale serve, market agent support and protection.
Sample order and trail order are acceptable.
The chain block can be attached on the trolley, and used as a travelling chain block. It is also suitable to monorail overhead converying system, hand travelling crane, and jib crane.
Features
Five prominent features in design and in service.
1. Safety in operation with minimum maintenance.
2. High efficiency and small size, easy to operate.
3. Light weight and easy handling.
4. Fine appearance with small size.
5. Durablility in service.
Operation instructions
Please inspect the hooks and body, the brake device and the lubrication of transmitting parts, load chain in good condition.

MODEL SK-0.5 SK-1 SK-1.5 SK-2 SK-3 SLA-5 SK-7.5 SK-10 SK-15 Capacity load 500kg 1000kg 1500kg 2000kg 3000kg 5000kg 7500kg 10000kg 15000kg Standard/m 2.5 2.5 2.5 2.5 3 3 3 3 3 Running test load(KN) 0.75 1.5 2.25 3 4.5 6.25 10 12.5 20 Headroom(drawn close up)Hmin(mm) 240 270 347 380 470 600 700 700 820 Effort required to lift max load 221 304 343 314 343 381 392 392 392 load chain number of fall 1 1 1 2 2 2 3 4 6 Load chain Dia(mm) 6 6 8 6 8 10 10 10 10 Dimensions(mm) A 120 120 142 178 142 178 210 356 358 B 108 122 139 122 139 162 162 162 196 C 24 28 34 34 38 48 64 64 69 D 120 142 178 142 178 210 210 210 210 Net weight(kg) 8 10 16 14 24 36 58 68 112 Gross weight(kg) 10 13 20 17 28 45 70 83 127 packing measurements(L*W*H)(CM) 28*21*17 30*24*18 34*29*20 33*28*19 38*38*20 45*39*24 55*51*29 62*50*28 68*60*34

Details Images
The Quality comparison of spare parts
Customized Service
Production process
Certifications
Usage
Payment
Our Service FAQ
Q1. What's information should I provide to get the price?
A:1. Chain quality? 2.the chain size? 3. the working voltage? 4. the machine frequency?
Q2. What's the lead time for regular order?
A: The normal delivery time is 60-120 days. If you have special needs or if the quantity is greater than 1 set, please explain
when making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.
Q3. The space of my workshop is limited, can the machine is ok for me?
A: We have been specializing in European machines for 20 years. Machines are one of the biggest features of our products.According to your needs, our designers will tailor-made products suitable for your use.
Q4.Can you provide lifting tools?
A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
Q7. How do you ship the goods and how long does it take to arrive?
A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.
Q8. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q11. How to proceed an order for hoist?
A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q12. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
