Turret CNC Turning Milling Lathe Machine with Tailstock and Y Axis to Process The Complex Workpieces Tc-46

Product Description

Product Description

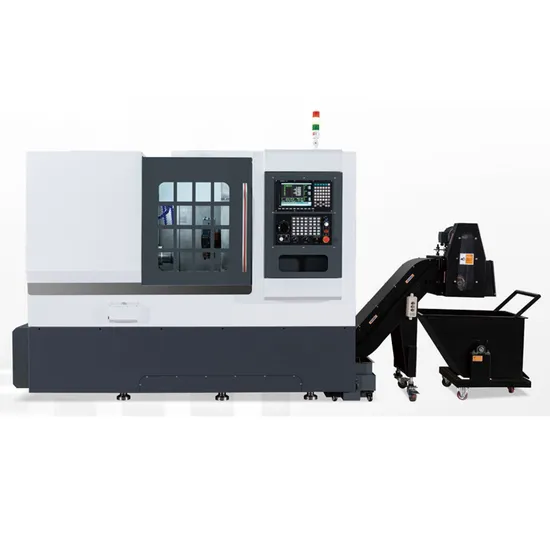

TC-46 CNC Turning Milling Lathe Machine with Y axis
The machine adopts an integral high and low rail bed structure, which has good rigidity and stability. The two axis guide rail adopts imported overweight roller line rail slider, which can be equipped with a Y axis structure. The 12/15 station power servo turret is used. The spindle adopts an independent spindle unit, which has good rigidity, low noise and high precision, and is suitable for secondary processing and molding of complex process parts.


Technical Parameters TC-46:

Item	Unit	Specification
Spindle through hole diameter	mm	56
Maximum passable spindle bar diameter	mm	46
Maximum turning diameter of bed	mm	500
Center height of tool table and spindle	mm	160
Maximum processing length	mm	400
Bed structure		15°
Spindle end specification		A2-5
Spindle speed	r/min	4000
X Axis travel	mm	300
Z Axis travel	mm	400
Y Axis travel	mm	±50
X,Z screw	mm	R32/C3
X,Z guide rails	mm	45P
G0 speed	m/mm	22
Spindle runout	mm	0.003
Repeatability	mm	0.003
Minimum adjustable unit	mm	0.001
Processing precision	mm	IT6
Power turret specifications		BMT55-12/BMT45-15
Power head speed	r/min	4000
Power head specifications	pcs	0°/ 90°(2 pieces of each)
Chuck size	inch	6
Machine weight	kg	3800
Machine dimensions	mm	2600*1800*1900

FAQ
Q1: How can I choose the most suitable machines ?
A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .Q2: What's your main products of your company?A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and so on.Q3: What's the Payment Terms ?A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.Q4: What's the MOQ?A4: 1setQ5: What's the warranty?A5: One year.
