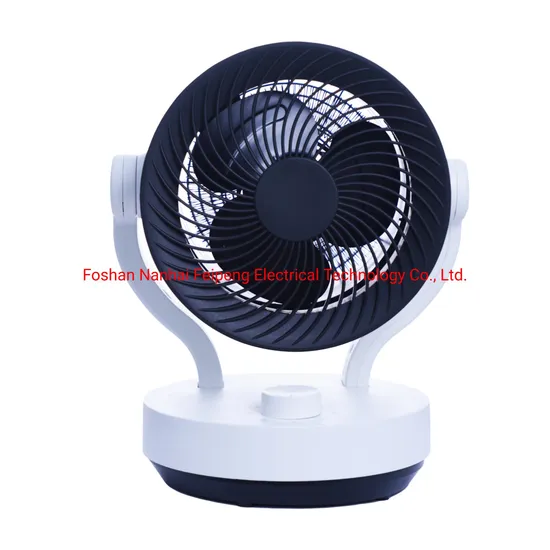

White Color Fashion Mini Electric Cooler & Heater Fan

White Color Fashion Mini Electric Cooler & Heater Fan

US$11.50-13.50 1,000 Pieces (MOQ)

Basic Info.

Model NO.
KND19
Material
Plastic
Installation
Pedestal
Certification
CE, CB
Color
Red or According The Request
Shipping
40hq Container
Quantity
5824PCS/ 40hq
Power
2000W
Model
3 Model
Thermal Fuse
Yes
Transport Package
Color Box/White Box/Brown Box
Specification
2000W
Trademark
Flypon
Origin
China
HS Code
841451
Production Capacity
500000PCS/Year

Product Description

PTC Heater Descrition:
MODEL NO. ND09-1 ND09-2 ND12-1 ND12-2 ND12-3 ND19
VOLTAGE 220-240V~ 220-240V~ 220-240V~ 220V-240V 220V-240V 220V-240V
FREQUENCY 50Hz-60Hz 50Hz-60Hz 50Hz-60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
MAX POWER 1500W 1500W 2000W 1500W 2000W 3000W
G.W. (KG) 1.4 1.4 1.7 1.6 2.2 4.5
N.W. (KG) 1.7 1.7 2 1.9 2.7 5
COLOR RED+BLACK RED+BLACK RED+BLACK RED+BLACK RED+BLACK RED+BLACK
MODE 3MODE
NORMAL WIND/ LOW HOT/ HIGH HOT
3MODE
NORMAL WIND/ LOW HOT/ HIGH HOT
3MODE
NORMAL WIND/ LOW HOT/ HIGH HOT
3MODE
NORMAL WIND/ LOW HOT/ HIGH HOT
3MODE
NORMAL WIND/ LOW HOT/ HIGH HOT
3MODE
NORMAL WIND/ LOW HOT/ HIGH HOT
INSTALLATION DESK/PORTABLE DESK/PORTABLE DESK/PORTABLE DESK/PORTABLE DESK/PORTABLE WALL
OPERATION BY HAND BY HAND BY HAND BY HAND BY HAND REMOTE CONTROL
TIMER SETTING NO NO NO NO NO 7.5H
OSCILLATION YES YES YES YES YES YES
THERMAL FUSE YES YES YES YES YES YES
FALLING DOWN SWITCH YES YES YES YES YES YES
PACKING 1 pc/ carton box 1 pc/ carton box 1 pc/ carton box 1 pc/ carton box 1 pc/ carton box 1 pc/ carton box
PRODUCTS SIZE(CM) 20.5*16.5*33 20.5*16.5*33 21*21*46.5 21*21*43.5 21*21*56.5 87*25*14.5
PACKING SIZE(CM) 21*17*33.5 21*17*33.5 21.5*21.5*48.5 21.5*21.5*44.5 21.5*21.5*58 92*30.5*18.5
QTY '(20''GP/40''GP/40''HQ) 5824/5096/2457 5824/5096/2457 2940/2640/1210 3240/2860/1430 2360/2200/1100 1270/1092/546
PLUG TWO ROUND PLUG TWO ROUND PLUG TWO ROUND PLUG TWO ROUND PLUG TWO ROUND PLUG TWO ROUND PLUG

ASSEMBLY INSTRUCTIONS
BASE AND PILLAR ASSMBLY
1.Take our base and pillar part from the carton.
2.Revolve the height adjustor anti-clock wisely out,draw the steel tube out of the pillar.Then revolve the height adjustor clock-wisely to fasten it.
3.Locate the pillar proper into the base,take the screw nut from the plastic bag and fit if to the pillar from the bottom of the base and fasten it.
4.Adjust the height adjustor to meet you requirement of the height of the wind sending.
FAN BODY AND COLUMN ASSEMBLE
Unscrew the fixing knob on the back of the bottom of fan body,emptied the hole in the bottom of fan body,put extension column into the hole of the fan body,then tighten the fixing knob.
BLADE AND GRILLES ASSEMBLY
1.Remove the spinner and the plastic nut from the front side of the motor shaft then tighten the plastic nut.
2.Discard PVC sleeve on shaft.Insert the blade into shaft,made sure the stopper pin is clipped in to the groove of the blade.Screw the spinner counter clockwise to tighten the blades.
3.Hold the front guard to make sure that the trade mark is level and that the front guard are centered over the rear guard.Then push all the safety clips firmly into place.
OPERATION INSTRUCTION
Speed control please use "speed "switch to turn on/off the fan and adjust the speed by push the swich to number indicating. 0-off 1-low 2-medium 3-high
OSCILIATION CONTROL
To make the fan oscillating,pres the oscillation knob located on the top of the motor housing.To get the directional airflow,press the oscillating knob.
TILTING CONTROL
Unscrew the tilting knob,adjust the fan head to the desirable angle by holding the fan head,then tighten the knob.
MAINTENANCE INSTRUCTIONS
The fan requires little maintenance.Do not try to fix it by yourself,refer it to qualified service personnel if service is required.
1.Before cleaning and assembling,do not plug the pins into the socket.
2.To ensure adequate air circulation to the motor,keep vents at the rear of the motor housing room dust,fluff and etc,A vacuum cleaner can not be used to clean these vents before unplug.Do not disassemble the fan to remove fluff.
3.Please wipe the exterior ports with a soft cloth soaking a mild detergent.Do not use any abrasive detergent or solvents to avoid scratching the surface.
4.Do not allow water or any other liquid in to the motor housing or interior parts.
5.If the power cord is damaged,it is strongly recommended to request a specialist to handle.
MOTOR
We choose the best motor to use!!
Workshop
Packing
Carton 1pcs/color/white/brown carton
Size 21*17*33.5
Container 40hq
Quantity 5824pcs/40hq

Our Services
High quality because of attention to detail
1* Our factory machine using automatic production lines, the motors are more reliability and high-quality .
2* Low heat during operation, silent for a long time overload running, not hot, put an end to rust.
3* Compact design,beautiful shape and artful design,and also easy to take with.
4* Strong wind ,big motor,faster speed and 3 speed natural wind grade choices.
5* Security smart,safty switch and over temperature protection keep it more safty.
6* Low power ,environment friendly.
Company Information
Foshan Nanhai Feipeng Electrical Technology Co., LTD. is located in Foshan Guangdong China,which is specialized in R & D , production and operation in the line of electric fan , DC fan, heater and other household appliances. Sorts of the products have CB and CE approval certificated.
Lingfei covers an area of more than 30,000 square meters, has a spacious workshop, advanced testing equipment, as well as a team of professional engineers , technical personnel. Through ISO9001: 2000 management system and strict quality control system,IQC,PQC and FQC testing ensures that our products are defect free.
Ascribed to excellent quality and competivtive price, prompt delivery, our products have won a good reputation both at home and abroad.
"Products derived from technology", its the aim that we are always strive for, which make our products occupy the worldwide market rapidly.
If you are interested in our products,please do not hesitate to contact us.We assure that our abundant experiences in OEM and ODM can lead to mutual benefit in the near future.
FAQ
Q:How to contact us?
A: Sanjia Industrial Area, Xilian, Jinsha, Nanhai Area, Foshan, Guangdong, China (Mainland)Postcode:528200
tel:(86) 13425923808
