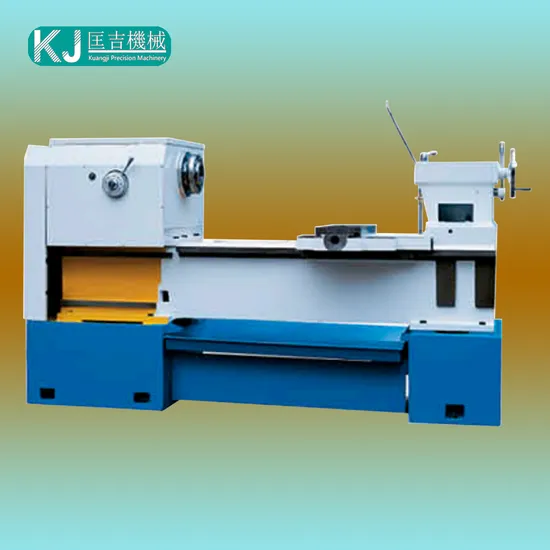

Ordinary Horizontal Centre Lathe C6132D-1000 High Precision Universal Lathe for Metal Manual Lathe Machine

Product Description

1, ordinary (saddle) lathe a spindle through the hole diameter of 48mm:
C6132(40)A: The rail span is 290mm; Processing diameter of 350~ 400; Center distance 500-1000mm;
C6132(40)D: The rail span is 320mm; Processing diameter of 350~ 400; Center distance 500-1500mm.
2, large aperture ordinary (saddle) lathe:
(1)CN6140B: the guide rail span is 390mm; The spindle bore diameter of 82, the processing diameter of 420, the center distance of 1000-3000mm;
(2)CN6150B: the guide rail span is 390mm; The spindle bore diameter of 82, the processing diameter of 500, the center distance of 1000-3000mm;
(3)CN6180B: the guide rail span is 510mm; The diameter of the main shaft is 82, the processing diameter is 800, the center distance is 2000-3500mm;
(4)CW6195F: the rail span is 550mm; The diameter of the main shaft is 105, the processing diameter is 950, the center distance is 2000-5000mm;
(5)CWQ61110F: the rail span is 550mm; The diameter of the main shaft is 105, the processing diameter is 1100, the center distance is 2000-5000mm;
(6)CWQ61125F: the rail span is 550mm; The diameter of the main shaft is 105, the processing diameter is 1250, and the center distance is 2000-5000mm.
3. CJK, CNC series (flat bed, inclined bed) CNC lathes and CNC light machines:
Processing diameter of 350~ 1250, processing length 750~3000mm.

Technical parameter	Machine tool type	C6132A C6232A	C6132D C6232D
Maximum workpiece diameter of the bed		350 mm	350 mm
Maximum workpiece length		750 mm,1000 mm	750 mm,1000 mm,1500 mm
Width of bed rail		290 mm	320 mm
The maximum diameter is machined on the tool holder		190 mm	190 mm
Maximum longitudinal travel of the tool holder		630 mm,880 mm	630 mm,880 mm,1380 mm
Maximum transverse travel of the tool holder		200 mm	220 mm
Bar diameter		45 mm
Maximum rotating diameter of workpiece in saddle groove		520 mm	520 mm
Platter front saddle effective length		200 mm	200 mm
Spindle center height		175 mm	175 mm
Spindle head connection		C6
Spindle through hole diameter		46 mm
Taper of spindle inner hole		MT6
Spindle speed range		25~1600 r/min (12)
Taper of the inner hole of the center sleeve		MT4
Maximum movement of the center sleeve		130 mm
Maximum lateral movement		±10 mm
Screw thread	Metric system	0.45~20 mm/r (30)
	British system	80~1 3/4 n/1" (35)
	module	0.25~10mm (25)
	Diametral pitch	160~3 1/2 DP (30)
Main motor type		YD132M_9-B5 3/4.5 kW
Main drive triangle belt type and specification		4-A-1900 mm,4-A-2000 mm
Overall dimensions Length x width x height	750 mm	1950mmx900mm x1200 mm	1950mmx950mmx1200mm
	1000 mm	2200mmx900mmx1200mm	2200mmx950mmx1200mm
	1500 mm		2700mmx950mmx1200mm
Net machine weight	750 mm	1300 kg	1350 kg
	1000 mm	1400 kg	1450 kg
	1500 mm		1550 kg
