Container Truck Loading Unloading Belt Conveyor Motorised Telescopic Roller Conveyor for Carton Box

Product Description

Container Truck Loading Unloading Flexible Belt Conveyor Motorised Telescopic Roller Conveyor for Carton Box
Container Truck Loading Unloading Flexible Belt Conveyor Motorised Telescopic Roller Conveyor for Carton Box
Container Truck Loading Unloading Flexible Belt Conveyor Motorised Telescopic Roller Conveyor for Carton Box

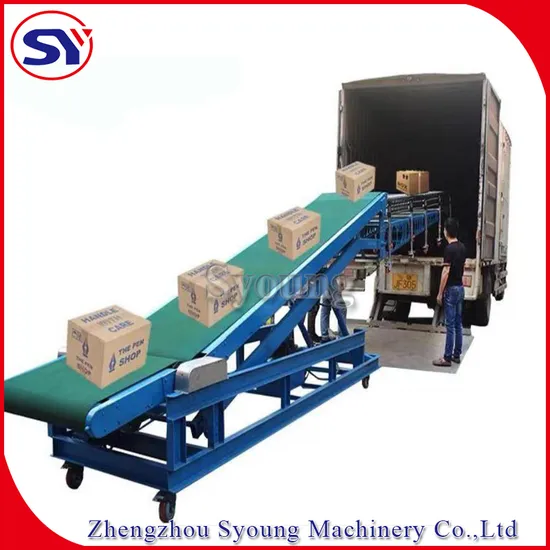

★Brief Introduction of flexible truck container loading belt conveyor system:
The truck/vehicle loading&unloading conveyor system is mainly used for cargo transportation and loading
&unloading trucks and containers at ports, docks, stations, airports, warehouses, mines etc.
Truck/vehicle loading&unloading conveyor system usually consists of incline belt conveyor and flexible roller conveyor to lift or lower cargo into or out of containers or trucks from ground level.
The belt conveyor is equipped with hydraulic device, so we can adjust its height freely as truck's working height.
We can set suitable transport speed as different work, since the belt conveyor has variable speed 10-20M/min by frequency control.
The telescopic roller conveyor have gravity type and motorized type available.
★Parameters of flexible truck container loading belt conveyor system:

Slop belt conveyor	Belt width(mm)	600/800(Customized)
	Work table width(mm)	720/920
	Height(mm)	700-2500(mm)
	Power(Kw)	1.5/2.2
	Load capacity(Kg/m)	50
	Speed(m/min)	10-20
Flexible conveyor (motorized/gravity)	Roller width(mm)	600/800(Customized)
	Telescopic length range(mm)	3000-8000(gravity) 1800-4200(motorized)
	Height(mm)	700-1000
	Load capacity(Kg)	50

★Drawing of flexible truck container loading belt conveyor system
★Features of flexible truck container loading belt conveyor system
1)The belt conveyor can combine with telescopic roller conveyor to finish the long distance transportation, or they can work separately. 2)It is flexible to move to the cargo loading&unloading place. 3)The flexible roller conveyor can extend freely, which will be near to the cargo position. 4)It can be switched on and off immediately, running in forward and reverse, and directly transport cargo into trucks or warehouses. 5)The mechanized and automatic loading&unloading operations improves the distribution efficiency, shorten logistics time, and reduces labor intensity.
★More photos of flexible truck container loading belt conveyor system
★You also can buy the single telescopic roller conveyor or incline belt conveyor separately. ★Packing&Shipping:
Generally packed in Plywood case.
Shipment within 10~20 working days after the advance/full payment.
★FAQ:
1.Who We Are?
Zhengzhou Syoung Machinery Co.,Ltd combines designing,manufacturing and marketing conveying system for many years and has been proved to be worldwide customers, welcome in conveying industry.
2.Why Choose Us?
Novel designing concept,perfect conveyors in both quality and shape!
Customized conveyor solutions at competitive price!
Best on-time delivery, detailed installation and debugging instructions!
3.Could you quote me your standard conveyor?
All conveyors is non-standard equipment, please let me know the width and length, height of the conveyor you need to offer you the best price.
we also customize as your special requirements, such as adjustable speed, adjustable height etc.
