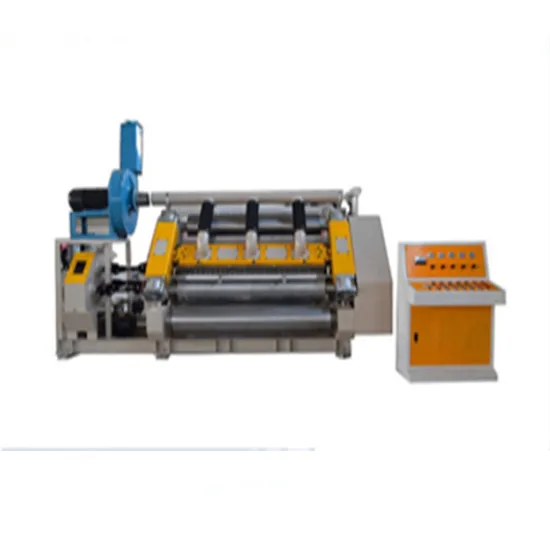

Factory Price Fingerless Vacuum Adsorption Single Facer Corrugated Machine

Product Description

Features:
1.Corrugated material is made of 48CrMo +1F processing.
2.Pneumatic independment on the oar body.
3.Oil-filled gearbox is closed,which is connected with the universal axis.
4.Electric gluing adjustment with a computer which is tracking automarically.
5.Corrugated roller adopts bearing assembly,which is easy to disassemble.
6.Corrugated roller's adoption style:cover adsorption.
7.Flute type(UV/A,C,B,E) can be customized by your choice.

Technical parameter:

Parameter	W02C
Working width	1400-2200mm
Diameter of the corrugated rollers	Ø260mm/Ø280mm/Ø340mm
Max. Working speed	50--150m/min
Flute type	As customized(UV/A/C/B/E,etc)
Working power requirement	380V 50HZ
Heating mode	Elecrric/oil/steam optional

Realative Machines:
ABOUT US: Qingdao Fullon Richance Industry & Trade Co., Ltd. is located in west coast of the Qingdao which is one of the most beautiful city in China, it is a wholly owned subsidiary of Jiaonan general machinery factory which was build in 1982 and one professional manufacturer for textile machinery series productions. Qingdao Fullon Richance Industry & Trade Co., Ltd. joined paperboard, carton machinery and cardboard printing machinery manufacturing industry in 1991. The company covers an area of 60 acres, existing production workshop 18000 square meters and more than 300 employees. Since the plant founded thirty years, company has been continuously develop and expand.
Qingdao Fullon Richance Industry & Trade Co., Ltd. has strong technical strength, sophisticated production equipment, owning vehicles, milling, planing, boring and other machining equipment more than 100 sets, and there are two manufacturing bases in different city of China. Qingdao Fullon Richance Industry & Trade Co., Ltd. also has domestic most advanced tungsten carbide corrugated manufacturing and repair center, large computer-controlled grinding machine corrugated stick, intermediate frequency quenching furnace, and large cylindrical grinder, etc. Full set of advanced production processing and testing equipment.
Qingdao Fullon Richance Industry & Trade Co., Ltd. focused on technological progress, product upgrading, gradually formed a corrugated board production line, single-sided machine, printing (slotting, die cutting) series, 50 varieties, more than 100 specifications of the product system, could meet different level user' S needs. In 1996 Qingdao Fullon Richance Industry & Trade Co., Ltd. launched three, five, seven corrugated board production line, and obtained national patent products. We independently developed computer control automatic high speed printing, slotting, cutting machine with high speed, high accuracy etc technical advantages, gain global market' S acclaim and recognition.
