Focus 40m3 5000kg Twin Shaft Mini Concrete Mixer with Pump for Sell

Product Description

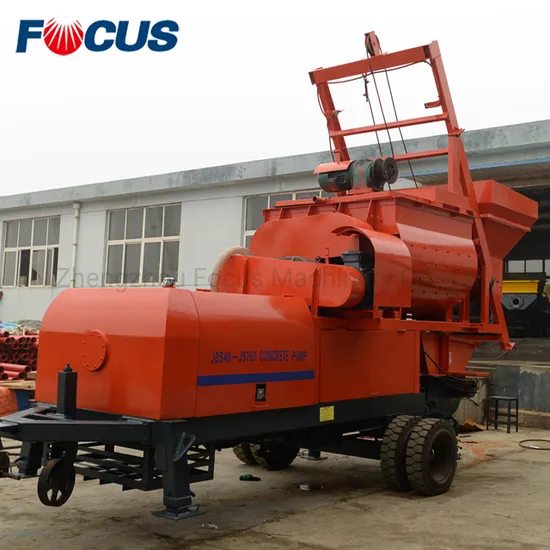

Focus 40m3 5000kg twin shaft mini concrete mixer with pump for sell
FOCUS ADVANTAGES
Twin-shaft mixer with Pump:
1.great mobility, very low price;
2.ISO and CE certified with 12 months warranty;
FEATURES
Why would our clients choose FOCUS trailer Twin-shaft mixer with Pump?
1.Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components' life is prolonged greatly. This is convenient for judgeing and removing trouble.
2.Large valve changing direction, makes the main pumping loop quick response, small leakage, good stability,high reliability and high resist contaminative capability.3.Hydraulic system has safe relief protection,at the same time,when the system pressure is over, the main oil pump cutting device makes itself be protected reliably.
4.Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing pressure and economic energy control.
5.Cone sealing of all pipes make the pipe joints seal reliably.
6.The high-low pressure switch adopting cartridge valve of reduces the trouble of dismantling and installing the oil pipe.
7.Adopt emulsification technology of initiative and passivity recovery integration.
8.Compared with domestic product, the electric control system is simplest, the element quantity is fewest and its reliability is highest.9.The wire remote equipment is convenient for operation far away.
10.Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction can be changed reliably.
11.The design of hopper and S valve and so on adopt I-DEAS software to caculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.
12.The agitator have unique form, which separates the hydraulic motor from agitator bearing pedestal.At the same time, adopting large displacement motor ensures that the agitator moment is big enough.
13.Make sure the pumping is good and decline the phenomenon of pipe jam, the spectacles wear plate and cutting ring should be useed in lower abrasion. FOCUS's spectacles wear plate and cutting ring use high wear material, making the components' life prolonged greatly.
14.The hydraulic circuit will take high oil into double distributor,and then the lubricating part can obtain hydraulic oil.It ensures the lubrication of the concrete cylinder's piston and other parts and prolongs the life of piston and other sealings.
15.The radiator equipment makes the working oil temperature of hydraulic system below 70ºC and makes the machine in normal status

Model Parameter	JBS40B-JS500	JBS40B-JS750	JBS40B-JS500-129R	JBS40B-JS750-129R
Main oil pump	Kawasaki, Korea	Kawasaki, Korea	Kawasaki, Korea	Kawasaki, Korea
Main oil pump displacement(ml/r)	112	112	112DT	112DT
Theoretical displacement	40	40	40	40
Main engine kw	45	45	Weichai Deutz 129kw	Weichai Deutz 129kw
Stirring motor power kw	18.5	30	Hydraulic motor	Hydraulic motor
Increase the power of the motor	5.5	7.5
Mixer productivity	25	35
Main cylinder bore/stroke(mm)	Φ100/1000	Φ100/1000	Φ100/1000	Φ100/1000
Concrete cylinder bore/stroke(mm)	Φ200/1000	Φ200/1000	Φ200/1000	Φ200/1000
Hydraulic hoses	Manuli, Italy	Manuli, Italy	Manuli, Italy	Manuli, Italy
Seal	United States Parker	United States Parker	United States Parker	United States Parker
PLC unit	Japan Omron	Japan Omron	Japan Omron	Japan Omron
Remote control	Wireless remote control	Wireless remote control	Wireless remote control	Wireless remote control
High and low voltage conversion	×	×	×	×
Manifold	Beijing Huade	Beijing Huade	Beijing Huade	Beijing Huade
Pumping distance horizontal/vertical (m)	500/120	500/120	500/120	500/120
Pressure gauge	Imported from Germany	Imported from Germany	Imported from Germany	Imported from Germany
Lubrication system	Fully automatic hydraulic	Fully automatic hydraulic	Fully automatic hydraulic	Fully automatic hydraulic
Outlet pipe diameter(mm)	Φ180	Φ180	Φ180	Φ180
Piping(m)	100RiceΦ125	100RiceΦ125	100RiceΦ125	100RiceΦ125
