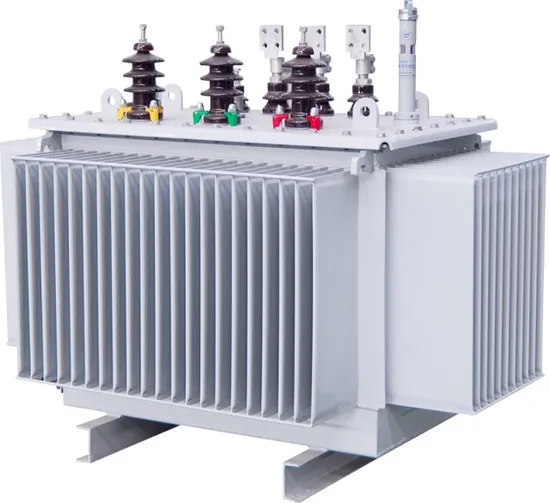

Oil Immersed Transformer, Distribution Electric Power Transformer

Product Description

Product Description
Jicheng Electric, founded in 2014, Headquarters is located in China Electric Capital Yueqing City,The company has advanced production line equipment and superb manufacturing technology, professional technical back-bone, professional production of 10kV, 35kV, 110kV, 220kV class oil-immersed power transformers, 10kV, 35kV insulation level of cast resin dry-type transformers, H class insulation environmentally friendly dry-type transformers, oil-immersed amorphous alloy transformer, amorphous alloy resin insulation dry-type transformers, 6kV, 10kV level mine mobile substation, mining and oil-immersed three-phase transformers, vacuum circuit breakers and
Performance parameters

Rated capacity(KVA)	Voltage Combination and tap range			connection of transformer winding	No-load loss (W)	Load loss (W)	No-load current (%)	Short circuit impedance (%)
	High voltage (KV)	High voltage tap range ( %)	Low voltage (KV)
50 100 200	10 10.5 11	±5% ±2x2.5%	0.4	Dyn11 Yyn0	130 200 340	910/870 1580/1500 2730/2600	1.1 1 0.9	4 4 4

S13-M Type 6~10kVPerformance parameters

Rated capacity(KVA)	Voltage Combination and tap range			connection of transformer winding	No-load loss (W)	Load loss (W)	No-load current (%)	Short circuit impedance (%)
	High voltage (KV)	High voltage tap range ( %)	Low voltage (KV)
50 100 200	10 10.5 11	±5% ±2x2.5%	0.4	Dyn11 Yyn0	100 150 240	910/870 1580/1500 2730/2600	0.8 0.7 0.6	4 4 4

Detailed Photos
High overload distribution transformers
Product overview
In recent years, with the increasing mobility of the population, the hot season, and distribution transformers in rural areas during the Spring Festival period of severe overload short run problem of rural electricity appears. In order to solve such problem of electricity, the company response to the State Grid Corporation of China in recent years advocated actively develop rural power distribution transformers and high overload capacity application work, we developed a high overload capacity distribution transformers.
High overload capacity integrated rural power distribution transformer station area based on typical load characteristics, high overload distribution transformer overload performance will meet the 1.5 times the rated capacity of six hours, 1.75 times the rated capacity of 3 hours, 2.0 times the rated capacity of one hour of continuous operation stage design requirements, and does not affect the normal life of theCertifications
Packaging & Shipping
Company Profile

Jicheng Electric Co.. Ltd.is a modern technology companyintegrating R&D,production and sales of electrical equip-ment.it mainly produces high and low voltage complete setsofequipment,box type substations, power transformers, andDC panels.
The company is market-oriented and actively develops newvarieties with independent intellectual property rights andbright science and technology.Products are moving towardszero defects.The company's full implementation of "customeisatisfaction project" has specifically established a strongtechnical after-sales service team to solve various technicaproblems for customers
Faced with the challenges of economic globalization, Kyrgyz-stan has a far-sighted vision. With its brand as its banner andits science and technology as the driving force,it isdetermined to base itself on industrial electrics and adhere tothe development direction of "internationalization, scienceand technology,andindustrialization."
The company'sbroad-mindedness and positive response to the country'scall for the development of electric power for the benefit ofmankind have created a new gloryin the electric powerindustry
