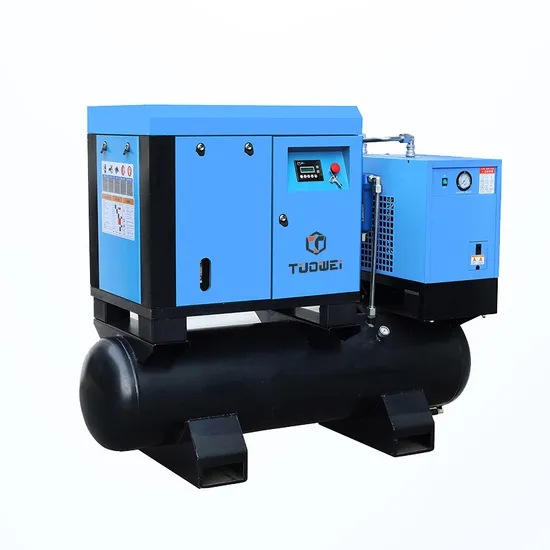

15kw 20HP 4-in-1 Industrial Screw Air Compressor for Industrial Sewing Machine
| US$1,978.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SGAT 15
Lubrication Style
Lubricated
Cooling System
Air Cooling
Power Source
AC Power
Cylinder Position
Vertical
Structure Type
Closed Type
Installation Type
Stationary Type
Type
Twin-Screw Compressor
Product Name
Air Compressor for Sewing Machine
Driven Method
Driect Driven
Working Pressure
8 10 12 16 Bar
Motor
IP54
Air End
Baosi Airend
Bearing
Skfbrand
Advantages
Energy Saving
Air Tank
300 or 500L
Pipe Diameter
3/4 ′′
Color
Customized Color
Transport Package
Standard Export Wooden Packaging
Specification
1900*780*1780mm
Trademark
Tuowei
Origin
Fujian
HS Code
8414804090
Production Capacity
300 Sets/Per Month
Packaging & Delivery
Package Size
185.00cm * 75.00cm * 164.00cm
Package Gross Weight
450.000kg
Product Description
4-in-1 Industrial Screw Air Compressor1. Efficient performance, convenience, and space saving 2. High efficiency and reliable quality
3. Power: 7.5~37KW
4. Pressure: 7~16bar
5. Capacity: 0.6~2.8m3/min
| Model | Motor Power | Working Pressure | Capacity | Air tank (L) | Air Outlet | Net Weight | Dimension (mm) | Start Method | Noise dB(A) | ||
| kW/hp | psi | bar | cfm | m3/min | KGS | L*W*H | |||||
| SGAT08 | 7.5/10 | 116 | 8 | 38.84 | 1.1 | 350 | G1/2'' | 350 | 1850*700*1460 | Y-△ | 66±2 |
| SGAT11 | 11/15 | 116 | 8 | 52.97 | 1.5 | 350 | G3/4'' | 450 | 1850*750*1640 | 68±2 | |
| 145 | 10 | 45.90 | 1.3 | ||||||||
| 174 | 12 | 38.84 | 1.1 | ||||||||
| SGAT15 | 15/20 | 116 | 8 | 81.00 | 2.3 | 350 | G3/4" | 450 | 1850*750*1640 | 68±2 | |
| 145 | 10 | 74.00 | 2.1 | ||||||||
| 174 | 12 | 67.10 | 1.9 | ||||||||
| SGAT22 | 22/30 | 116 | 8 | 127.10 | 3.6 | 350 | G1" | 660 | 2050*850*1780 | 68±2 | |
| 145 | 10 | 113.00 | 3.2 | ||||||||
| 174 | 12 | 95.30 | 2.7 | ||||||||
| SGAT08PM | 7.5/10 | 116 | 8 | 39.00 | 1.1 | 350 | G1/2'' | 350 | 1850*700*1460 | Frequency Conversion | 66±2 |
| SGAT11PM | 11/15 | 116 | 8 | 52.97 | 1.5 | 350 | G3/4'' | 450 | 1850*750*1640 | 68±2 | |
| 145 | 10 | 45.90 | 1.3 | ||||||||
| 174 | 12 | 38.84 | 1.1 | ||||||||
| SGAT15PM | 15/20 | 116 | 8 | 81.00 | 2.3 | 350 | G3/4" | 450 | 1850*750*1640 | 68±2 | |
| 145 | 10 | 74.00 | 2.1 | ||||||||
| 174 | 12 | 67.10 | 1.9 | ||||||||
| SGAT22PM | 22/30 | 116 | 8 | 127.10 | 3.6 | 350 | G1" | 660 | 2050*850*1780 | 68±2 | |
| 145 | 10 | 113.00 | 3.2 | ||||||||
| 174 | 12 | 95.30 | 2.7 | ||||||||
Company Profile
FAQ Q1: What is the rotor speed for the air end?A1: 2980rmp.Q2: What's your lead time?A2: usually, 5-7 days. (OEM orders: 15days)Q3: Can you offer water cooled air compressor?A3: Yes, we can (normally, air cooled type).Q4: What's the payment term?A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.Q5: Do you accept customized voltage?A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.Q6: What is your warranty for air compressor?A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.Q7: Can you accept OEM orders?A7: Yes, OEM orders are warmly welcome.Q8: How about your customer service and after-sales service?A8: 24hrs on-line support, 48hrs problem solved promise.Q9: Do you have spare parts in stock?A9: Yes, we do.Q10: What kind of initial lubrication oil you used in air compressor?A10: TOTAL 46# mineral oil.
