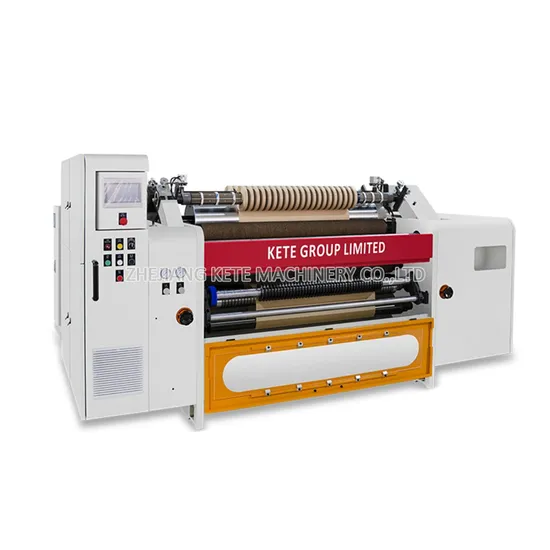

High Speed Self-Adhesive Slitter Machine BOPP Packing Jumbo Roll Slitting Rewinding Machine
| US$26,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KTSM-S300
Type
High-Speed Slitting Machine
Work Method
Round Knife Cutting
Structure
Cutting Part
Packaging
Cartons
Classification
Foil Slitting Machine
Applicable Process
Process Materials
Suitable Substrates
Foil Slitting Machine
Packaging Material
Wood
Product Name
Aluminium Foil Slitter Rewinder
Keyword
Foil Slitting Machine
Keyword 1
Aluminum Foil Slitting Machine
Keyword 2
Adhesive Tape Slitting Machine
Keyword 3
Tape Slitting Machine
Keyword 4
Slitting Machine Slitter Rewinder
Keyword 5
Adhesive Tape Slitter Rewinder
Keyword 6
Laminated Film Slitting Machine
Plasic Film Slitting
Yes
Aluminum Foil Slitting
Yes
Round Slitting Knife
Yes
Roll to Roll Slitting
Yes
Unwind with Air Shaft
Yes
Rewind with Air Shaft
Yes
Unwind with Auto Loading
Yes
Transport Package
Wooden Pallet
Specification
3450x3100x1650mm
Trademark
KETE
Origin
China
Production Capacity
20 Sets/ Month
Packaging & Delivery
Package Size
345.00cm * 310.00cm * 165.00cm
Package Gross Weight
4000.000kg
Product Description
This Foil Slitting Machine Is Suitable For Slitting Roll Materials Foil, Paper, Laminated Film, Self-Adhesive, Etc.
Ω Use Round Slitting Knife Ω With Auto Length Counting System Ω Unwind and Rewind with Tension Control Ω Unwind with EPC Control System
Ω Rewind use Air Shaft Ω Electrical Part use Schneider Brand Ω Unwind Shaft-less with Auto loading
| Model | KTSM-S300/ 1100 | KTSM-S300/ 1300 |
| Max. Raw Material Width | 1000mm (39.4") | 1200mm (47.2") |
| Max. Unwind Diameter | Φ800mm (31.5") | Φ800mm (31.5") |
| Max. Rewind Diameter | Φ600mm (23.6") | Φ600mm (23.6") |
| Min. Slitting Width | 50mm (1.97") | 50mm (1.97") |
| Max. Slitting Speed | 300m/min | 300m/min |
| Error | <0.5mm | <0.5mm |
| Paper Core Inner Diameter | 76mm/152mm (3"/6") | 76mm/152mm (3"/6") |
| Total Power | 18kw | 20kw |
| Machine Weight | 3300kg | 4000kg |
| Machine Size (LWH) | 3300 x 2700 x 1450mm | 3450 x 3100 x 1650mm |
| Machine Power | 3 Phase 220 / 380 / 440v 50/60Hz | |
