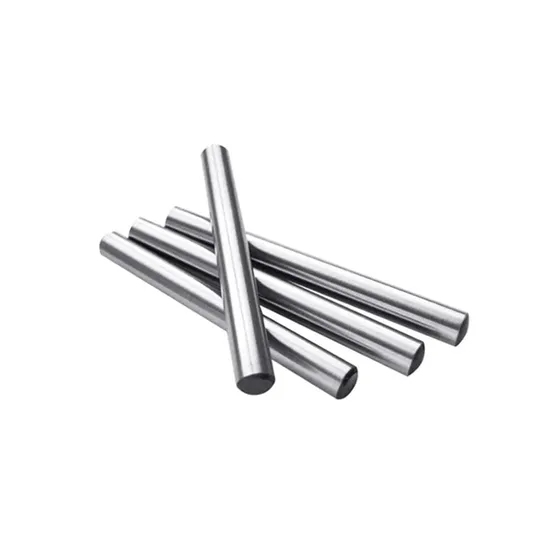

Wholesale High Quality 2.4363/N04405/AMS 4674/ASTM F467 Nickel Alloy Rod for Valve Parts Monel R405 Bar

Wholesale High Quality 2.4363/N04405/AMS 4674/ASTM F467 Nickel Alloy Rod for Valve Parts Monel R405 Bar

US$45.00-55.00 100 kg (MOQ)

Basic Info.

Model NO.
Monel R405 Rod/Bar
Surface Treatment
Anodizing
Type
Nickel base superalloy
Key Words
Monel R405 Bar/Rod
Thickness
2mm - 100mm
Outside Diameter
4.0 - 1219mm
Length
as Your Requirments
Diameter Tolerance
H9, H11, H13, K9, K11, K13 etc
Sample
Free-Sample
Surface
Lack, Peeled, Polishing, Bright, Sand Blast, Hl
MOQ
100kgs
Stock
in Stock
Material
Hastelloy
Transport Package
Wooden Package
Specification
Monel R405
Trademark
LORK
Origin
China
HS Code
7219350000
Production Capacity
50000kg/Month

Packaging & Delivery

Package Size
300.00cm * 200.00cm * 100.00cm
Package Gross Weight
50.000kg

Product Description

Product Description
Introduction Monel R405 is the free machining version of Monel 400. It is a nickel-copper alloy with a controlled amount of sulfur added to provide sulfide inclusions that act as chip breakers during machining. Like Monel 400, alloy R-405 is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions. Monel R405 is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion-resistance, good weldability and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress corrosion cracking in most freshwaters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions. This nickel steel alloy is particularly resistant to hydrochloric when they are de-aerated. As would be expected from its high copper content, alloy R-405 is rapidly attacked by acid and ammonia systems.
Composition The chemical composition of stainless steel grade Monel R405 is outlined in the following table.
Ni Cu Fe S Mn C Si
63.0 min 28.0-34.0 2.5 max .025-.060 2.0 max .3 max .5 max

Grade Specification
Grade UNS DIN EN AMS ASTM JIS
Monel R405 N04405 2.4363 AMS 4674 ASTM B164 -

Characteristic
Characteristics are essentially the same as those of Monel 400 such as:
Good machinability and is recommended for use with automatic screw machines Resistant to seawater and steam at high temperatures Excellent resistance to rapidly flowing brackish water or seawater Excellent resistance to stress corrosion cracking in most freshwaters Particularly resistant to hydrochloric when they are de-aerated Offers some resistance to hydrochloric and sulfuric acids a modest temperatures and concentrations, but is seldom the material of choice for these acids Excellent resistance to neutral and alkaline salt Resistance to chloride induced stress corrosion cracking High resistance to alkalis
Mechanical Properties Nominal Mechanical Property Range of Monel Alloy R-405
Condition Tensile (ksi) .2% Yield (ksi) Elongation % Hardness Brinell (3000 kg) Hardness Rockwell B
Annealed 70-85 25-40 50-35 110-140 60-76
Hot-Finished 75-90 35-60 45-30 130-170 72-86
Cold-Drawn, As-Drawn 85-115 50-105 35-15 160-245 85-23C

Applications Feed water and steam generator tubing. Brine heaters, sea water scrubbers in tanker inert gas systems. Sulfuric acid alkylation plants. Pickling bat heating coils. Heat exchangers in a variety of industries. Transfer piping from oil refinery crude columns. Plant for the refining of uranium and isotope separation in the production of nuclear fuel. Pumps and valves used in the manufacture of perchlorethylene, chlorinated plastics. Monoethanolamine (MEA) reboiling tube. Cladding for the upper areas of oil refinery crude columns. Propeller and pump shafts. Surface Treatment
