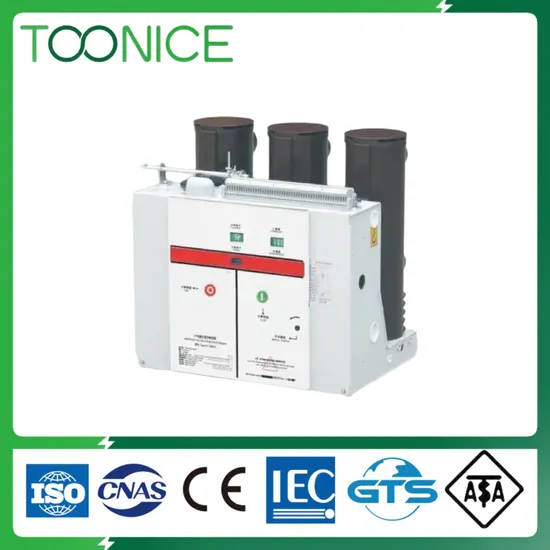

ZN63(VS1)-12 Indoor high voltage vacuum circuit breaker
(Hand cart style)
ZN63 (VS1)-12 series indoor handcart type high-voltage vacuum circuit breaker is a three-phase AC 50Hz, rated voltage of 12kV indoor switchgear, which can be used for the control and protection of industrial and mining enterprises, power plants and substations, electrical facilities, and is suitable for frequent operation places. The operating mechanism is integrated with the circuit breaker body, and the design can be used as a fixed installation unit, or it can be equipped with a special propulsion mechanism to form a handcart unit. The main circuit part can be used as an integral solid pole to achieve circuit breaker miniaturization, high reliability, maintenance-free, can be equipped with KYN28A-12 (GZS) and other mid-mounted handcart switchgear, fixed can also be used for XGN series fixed switchgear.

ZN63(VS1)-12 Side mounted indoor high voltage vacuum circuit breaker
(Side-mounted)
ZN63 (VS1)-12 side-mounted indoor high-voltage vacuum circuit breaker (hereinafter referred to as circuit breaker) is suitable for indoor switchgear of 12kV power system, as a power grid equipment, protection and control unit of power design of industrial and mining enterprises, suitable for switching loads of different properties and frequent operation, multiple breaking short-circuit current occasions. The product adopts a new type of circuit breaker operating mechanism, and the VSC primary part can be fixed with an international brand pole, which seals the vacuum interrupter and the main electrical circuit parts into a whole, protects the arc extinguisher from the impact of collision, dust and condensation, has strong environmental adaptability, greatly reduces the operation and maintenance costs, and truly realizes the primary partial maintenance-free product and less maintenance of the operating mechanism; The integrated design of the operating mechanism and the circuit breaker body has been verified by type test; It has E2 electrical life and M12 mechanical life.

Product Description
Z N 63(VS1) - 12 / X - X
1 2 3 4 5 6

1:Vacuum Circuit Breaker

2.Indoor

3.Design serial number

4.Rated voltage

5.Current rating

6.Rated short-circuit interrupting current(kA)

Technical Parameters:
ZN63(VS1)-12 (Hand cart style)

Number	Properties		Unit	Data
1	Rated voltage		kV	12
2	Maximum operating voltage		kV	12
3	Current rating		A	630 1250	6301250 16002000 25003150		12501600 20002500 31504000
4	Rated short-circuit breaking current (rated thermal stability current - RMS)		kA	20/25	31.5		40
5	Rated short-circuit closing current (peak)		kA	50/63	80		100
6	Rated peak withstand current (rated dynamic stabilized current - peak)		kA	50/63	80		100
7	4S rated short-circuit withstand current		kA	20/25	31.5		40
8	Rated insulation level	Working withstand voltage (before and after rated breaking)/1 min power frequency withstand voltage	kV	Ground 42/Fracture 48
		Impulse withstand voltage (before and after rated breaking) / rated lightning impulse withstand voltage peak		Ground 75/Fracture 85
9	Rated thermal settling time		s	4
10	Rated sequence of operations			Open-0.3S-Close-open-180S-Close-open
11	Mechanical life		time	20000
12	Rated number of short-circuit breaking current interruptions		time	30
13	Rated closing voltage of operating mechanism (DC)		V	AC,DC 110,220
14	Rated opening voltage of operating mechanism (DC)		V	AC,DC 110,220
15	Contact opening distance		mm	ll±1
16	Overtravel (contact spring compression length)		mm	3.5±0.5
17	Three-phase splitting, closing bounce time		ms	≤2
18	Contact closing bounce time		ms	≤2
19	Average opening speed		m/s	0.9~1.2
	Average closing speed		m/s	0.5~0.8
20	Opening time		ms	≤50
21	Closing time		ms	≤100
22	The resistance of the main loop of each phase		uΩ	630≤65		1250≤60
23	Static and dynamic contacts allow for wear and accumulated thickness		mm	3

ZN63(VS1)-12 (Side mounted)

Number	Properties	Unit	Data
1	Rated voltage	kV	12
2	Rated short-time power frequency withstand voltage		42
3	Rated lightning impulse withstand voltage peaks		75
4	Rated frequency	Hz	50
5	Current rating	A	630,1250	630,1250
6	Rated short-circuit interrupting current	kA	25	31.5
7	Rated short-time withstand current		25	31.5
8	Rated short-circuit duration	S	4
9	Rated peak withstand current	kA	63	80
10	Rated short-circuit closing current		63	80
11	Power frequency withstand voltage of secondary circuit (1min)	V	2000
12	Rated single/back-to-back capacitor bank interrupting current	A	630/400
13	Opening time	ms	20~50
14	Closing time		35~70
15	Mechanical life	time	20000
16	Rated operating voltage	V	AC 110,AC220 DC 110,DC220
17	Rated opening operating voltage
18	Rated voltage of energy storage motor
19	Rated power of energy storage motor	W	90
20	Energy storage time	s	≤15
21	Contact opening distance	mm	1l±1
22	Overtravel		3±1
23	Contact closing bounce time	ms	≤2
24	Three-phase splitting and closing, different periods		≤2
25	Average opening speed	ms	0.9~1.2
26	Average closing speed		0.5~1.8
27	Opening and closing bounce	mm	≤2
28	Dominant electrical loop resistance	μ Q	≤45(630)≤350250A)
29	Rated sequence of operations		Open-0.3S-Close-open-180S-Close-open

Detailed Photos
