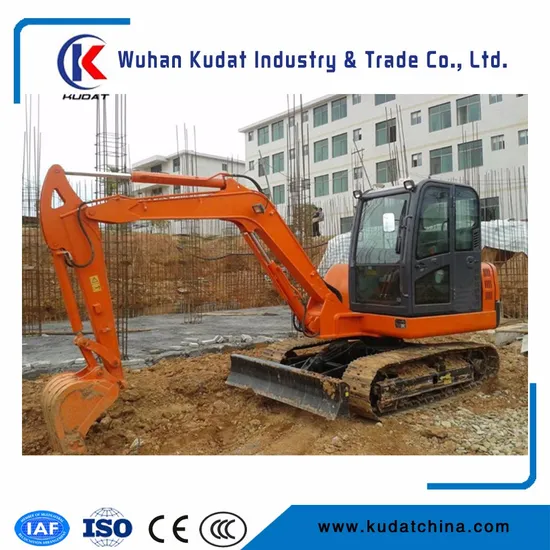

Mini Hydraulic Crawler Excavator 5000kg
| US$30,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KD50SR
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.18m3
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Operating Weight
6000kg
Color
Orange
Travelling Type
Tracked
Engine Model
Chinese Engine / Cummins Engine
Cylinders
4
Bore/Stroke
98*100mm
Displacement
3.319L
Fuel Injection
Direct
Fuel Injection Pump
Mechanical
Ground Pressure
30kpa
Transport Package
Bulk
Specification
SGS CE
Trademark
KUDAT
Origin
China
HS Code
8429521000
Production Capacity
1000PCS/Month
Product Description
1.FAVOURABLE APPEARANCE2.WITH BOOM DEFLEXION AND QUICK-HITCH
3.HYDRAULIC PILOT OPERATION
4.SALES AND MARKETING SPARED ALL OVER THE WORLD
5.GOOD QUALITY AND STABLE PERFORMANCE
6.MAKING FULL USE OF ENGINE POWER TO LOWER ENERGY CONSUMPTION
| Model | YC4F60G / Cummins Engine |
| Cylinders | 4 |
| Bore/Stroke | 98×100mm |
| Displacement | 3.319L |
| Fuel injection | Direct |
| Fuel injection pump | Mechanical |
| Fuel | Diesel |
| Fuel filter | Full flow |
| Cooling | Water-cooling |
| Horswpower(net) | 45.3kw @2200rpm |
| Maximum torque(net) | 227.2~247.3N·m @1400rpm |
| BOOM/ARM | |
| Boom | |
| Swing | 80° left / 50° right |
| Length | 3100mm |
| Boom weight | 230kg |
| Arm | |
| Length | 1500mm |
| Arm weight | 80kg |
| UNDERCARRIAGE | |
| Number of rollers | |
| Top,each track | 1 |
| Bottom,each track | 5 |
| Gradability | 58%(30°) |
| HYDRAULICS | |
| Pumps(3) | 2×Variable displacement piston pump+gear pump |
| Capacity- Maximum | 2×55L/min+36.5L/min |
| System relief pressure- | |
| Standard | 21MPa+18MPa |
| Pilot control hydraulic system- | |
| Pumps(1) | Gear pump |
| Maximum capacity | 9.9L/min |
| Relief pressure | 3.5MPa |
| Control valves- | |
| 8 function multiple control valve | |
| Pump #1 for right travel and boom function and bucket function | |
| Pump #2 for left travel and arm function | |
| Pump #3 for house swing and dozer function and boom swing | |
| Pump #4 for pilot valve | |
| Swing- | |
| Motor(1) | Fixed displacement axial piston design |
| Speed | 0-11rpm |
| Brake | Spring applied,hydraulically released with dual cushion relief |
| Tail swing radius | 1700mm |
| Travel- | |
| Motor(2) | Two-speed axial piston design |
| Final drive | Planetary gear reduction |
| Travel speeds- | Forward/Reverse |
| Low | 2.2km/h |
| High | 4km/h |
| HYDRAULIC CYLINDERS | |
| Boom cylinder(1) | |
| Bore diameter | 110mm |
| Rod diameter | 55mm |
| Stroke | 720mm |
| Arm cylinder(1) | |
| Bore diameter | 85mm |
| Rod diameter | 55mm |
| Stroke | 600mm |
| Bucket cylinder(1) | |
| Bore diameter | 80mm |
| Rod diameter | 45mm |
| Stroke | 840mm |
| ELECTRICAL | |
| Voltage | 12 volts |
| Alternator | 40 amp |
| Batteries(1) 12V | Heavy-duty |
| SERVICE CAPACITIES | |
| Hydraulic tank | |
| Refill capacity | 92L |
| Total system | 140L |
| Engine | |
| w/filter change | 10L |
| Fuel | 75L |
| Radiator | 10L |
| OPERATING WEIGHT | |
| With 75kg operator | 6000kg |
| Ground pressure | 30KPa |
