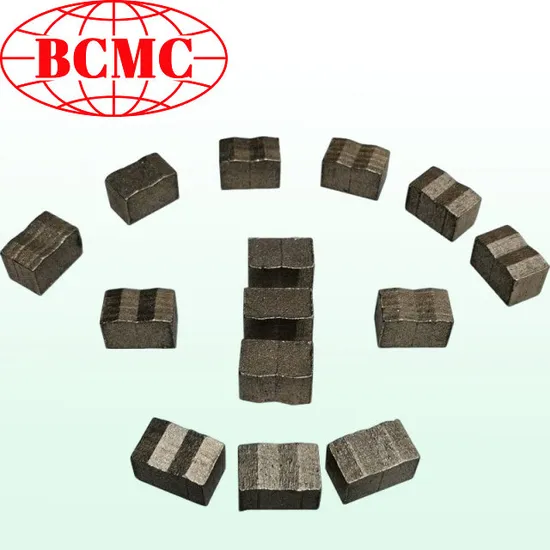

Bcmc Lava Stone Diamond Segments for Granite Marble Cutting Segment
| US$0.50-1.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Diamond Segment
Blade Material
Diamond
Application
Granite, Marble, Basalt, Volcanic, Lava Stone, and
Diameter
350 mm - 5000 mm
Segment Number
34 - 228
Transport Package
Plastic Packing
Specification
24x 3.2/3.6x 13(14) mm - 22.5x 14/15x 14(15) mm
Trademark
BCMC
Origin
Putian, Fujian, China
HS Code
8207901000
Production Capacity
5000 Pieces/Month
Product Description
BCMC Diamond Segment for granite marble cutting saw blade takes high quality raw materials for product producing. With good formula and matrix which ensure the long time use. Perform well in stone cutting and welcomed by customers all over the world.Main Features: Adopt with premium quality material for product producing. Meticulous in choosing the high strength diamond single crystal and high quality metal matrix (Co, Ni, Wu, Ti, Cu-Fe, etc.) Mature processing technology. The chemical bond formed after sintering can reduce the possibility of threshing and do the improve to the edge. Changing the single grinding function to the combination function of grinding and cutting. Optimize the sawing performance. Good sharpness, high efficiency and durable wear resistance which prolong the product's service life. Different professional formula for all kinds of stone materials targeted, suitable for cutting stone in different hardness.
Parameter:
| Product Name | Diameter | Steel Core | Segment | Segment | Application |
| (mm) | Thickness(mm) | Dimension(mm) | Number | ||
| Slab Cutting Segment For Stone | φ350 | 2.2/2.4 | 24x 3.2/3.6x 13(14) | 34 | Granite, Marble, Basalt, Volcanic, Lava Stone, Andesite, Travertine, Limestone, Sandstone, Quartz, Artificial Stone, Microcrystal Stone |
| φ400 | 2.6/2.8 | 24x 3.8/4.2x 13(14) | 38 | ||
| φ450 | 2.8/3.0 | 24x 4.2/4.6x 13(14) | 42 | ||
| φ500 | 2.8/3.0 | 24x 4.4/4.8x 13(14) | 48 | ||
| φ600 | 3.6 | 24x 4.8/5.2x 13(14) | 58 | ||
| φ700 | 4 | 24x 5.4/5.8x 13(14) | 68 | ||
| φ800 | 4.5 | 24x 5.6/6.0x 13(14) | 80 | ||
| Block Splitting Segment For Stone | φ1200 | 5.5 | 24x 6.8/7.2x 13(14) | 80 | |
| φ1500 | 6.5 | 24x 8.0/8.4x 13(14) | 92 | ||
| φ1600 | 7.2 | 24x 8.6/9.0x 13(14) | 108 | ||
| φ2000 | 8 | 24x 9.4/10x 13(14) | 128 | ||
| φ2500 | 9 | 24x 10.6/11x 13(14) | 140 | ||
| φ3000 | 10 | 24x 11/11.6x 13(14) | 160 | ||
| Other specifications are available upon request. | |||||
| Silent and non-silent blades are available for choice. | |||||
| Block Mining Segment for Stone quarrying | ||||
| Diameter | Steel Core | Segment | Segment | Application |
| (mm) | Thickness(mm) | Dimension(mm) | Number | |
| φ2000-2800 | 9-10 | 22.5x 11.6/12.6x 14(15) | 128-150 | Granite, Marble, Basalt, Volcanic, Lava Stone, Andesite, Travertine, Limestone, Sandstone, Quartz |
| φ3000-3600 | 9-10 | 22.5x 12.6/13.6x 14(15) | 160-180 | |
| φ2000-2800 | 9-10 | 22.5x 13/14x 14(15) | 128-150 | |
| φ3000-3600 | 9-10 | 22.5x 14/15x 14(15) | 160-180 | |
| φ4000-5000 | 11-11.5 | 22.5x 14/15x 14(15) | 198-228 | |
Producing Flow:
Application:
* Slab stone blade
* Block splitting blade
* Mining block blade
* Quarry stone blade
