Solid Wood MDF Panel Square Slot Groove Multi Blade Rip Saw Machine Wood Board Plank Multiple Rip Saw Machine

Product Description

Product Description

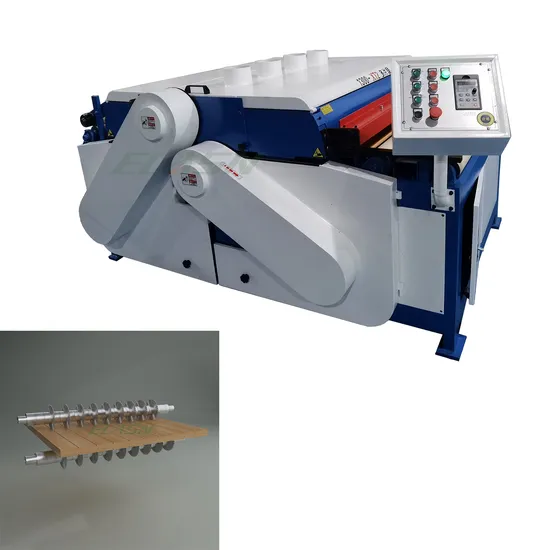

Wood Planks Multi Rip Saw
1.The wood plate multi rip saw adopts track-type transmission feeding, with high performance and high precision. 2.Applied for Solid wood composite flooring, laminate flooring, panel furniture, wooden packaging box, laminated timber, photo frame cutting into multiple pieces of equal or different specifications in one time.

3.The precision saw shaft ensures the smoothness and straightness of the cutting plate, and can be customized according to the customer's individual requirements.
Product Parameters

Technical Parameter	ELA1300-XT2	ELA1300-XT4	ELA1300-XD4	ELA1300-X3	ELA1300-XD3
Spindle speed(r/min)	2600	2600	2600	2600	2600
Saw blade diameter(mm)	205	205	270	205	255
Spindle of diameter(mm)	74	74	90	74	85
Width of processed material(mm)	Max1220,Min200	Max1220,Min200	Max1220,Min200	Max1220,Min200	Max1220,Min200
Thickness of processed material(mm)	Max30,Min5	Max30,Min5	Max60,Min5	Max30,Min5	Max45,Min5
Power of spindle motor(kw)	2*11	3*11	22	11	18.5
Feeding speed(m/min)	0-17	0-17	0-12	0-12	0-12

Product Features
Auto feeding1220mm width plank plywood cutting multi rip saw machine

1.The spindle can be single,double or three with fully enclosed protective cover;equipped with control panel,pressing rubber roller and anti-rebound feeding inlet for safety. Strengthen type spindle and axle bed.
2.Dust collection optional, environmental protection device.
3.Using high quality alloy wear-resistant saw blade.
4.Spindle #45 steel ,NSK high speed wear-resistant bearing.
5.Intelligent integrated power distribution system, easy to operate, safe and stable.
6.Automatic feeding and discharge conveyor customized for client. Working design and project plan can be provided for you by our professional technical team.
wood saw production line,multi blade rip saw machine,MDF saw machine,board rip saw,plank saw machine,Board saw,panel saw,rip saw,wood saw machine,wood saw,woodworking,circular saw,saw,woodworking,panel saw,best panel saw,panel saw plans,saw line,circular saw,floor saw,board groove sawBoard saw,panel saw,plank saw machine,MDF saw machine,rip saw,multi blade rip saw machine,wood saw machine,wood saw,wood saw production line
Detailed Photos
Anti rebound design feeding inlet, guarantee safety 6 groups high level rubber feeding roller
Double spindle upper and lower axises multi rip saw Multi saw blades, belt and chain transmission
Multi Spindles with saw blades and customized size of spacers Customized 4 spindles heavy duty model rip saw
Electric cabinet Dust collection hole customized

Engineering case
Wood board plank MDF auto cutting production line customized for clients:
Engineering case:
1.Feeding type can choose gantry feeding or pushing type.
Different feeding system:
2.Automatic lifting table and stacking table for choice.
3.Feeding and discharge roller conveyor customized for you.
