CCA Wire Clad Machine Copper Clad Aluminum Machine

Product Description

CCA wire clad machine Copper clad aluminum machine
Product Description
VTL series copper clad aluminum wire machine are new type equipment for producing the bimetallic CCA wire which are developed and produced by our company. The equipment uses high-quality thinner copper tape as outer wrapping sleeve, uses aluminum bar or aluminum alloy bar as the core, continuous warps and vertically welding the copper tape for bimetallic complex.
The main characteristics of this equipment are high efficiency, low consumption, and short process. The society returns and environment effect are outstanding: save much copper resource; the wrapping-welding technology has no pollution; the thickness of the outer copper sleeve is symmetrical and homocentric; it's very suitable for generatrix wire for communications, electron, power transmission. The equipment is manufactured by high precision, so the machine can steady-running and operation is simple, it is an ideal equipment and advanced technology for producing the bimetallic CCA generatrix wire now.

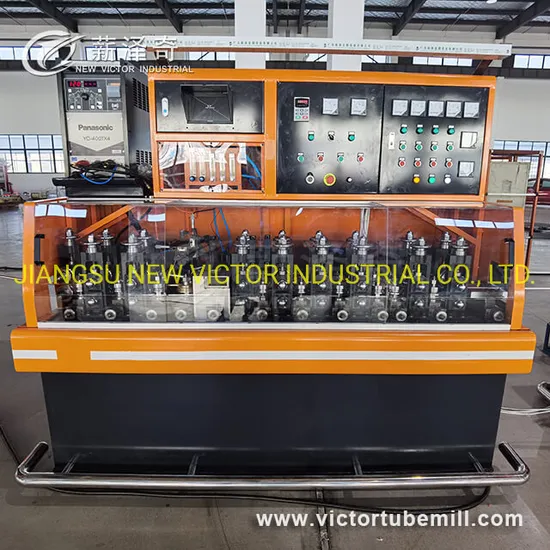

Detailed Photos
Product Parameters

model	VTL-10	VTL-12	VTL-14	VTL-15	VTL-16	VTL-17
size	φ 10mm ( 15% CCA)	φ 12mm ( 12% CCA)	φ 14mm ( 10% CCA)	φ 15mm ( 9% CCA)	φ 16mm ( 8.5% CCA)	φ 17mm ( 8% CCA)
speed	0-10 m/min Inverter adjustable
AI bar Dia.	φ 8.65 mm	φ 10.65 mm	φ 12.7 mm	φ 13.7 mm	φ 14.7 mm	φ 15.7 mm
Cu tape ( Th* Wd)	0.34 ~0.36 * 31.4mm	0.32 ~0.36 * 37.7mm	0.36 ~0.40 * 44.0mm	0.32 ~0.36 * 47.1mm	0.32 ~0.36 * 50.2mm	0.32 ~0.36 * 53.4mm
Power	30kw		35kw
Voltage	380/440V ± 10%,50/60HZ Useful-Earthing
Technique method	TIG400 Argon gas-protection vertical wrapping-welding,no pollution
Gas	99.999% High-pure argon
Water	Circular pure water by tank
Overall size	15000~18000*4000*2000mm
Weight	≈6000kg

Certifications
Company Profile
Jiangsu New Victor industrial Co., Ltd. is a high-tech private stock listed company, the company focuses on high-frequency direct seam welding pipe equipment for 17 years, We are a high-tech enterprises which contains design, production, manufacturing and technical consulting. Through continuous research and development, the company has more than 20 patents, leading the definition of product quality and service efficiency of new standards.
The company's VZH series of machines with high strength design, rigorous material selection, full heat treatment, precision processing, fine assembly, stable operation, high efficiency, energy saving and consumption reduction, welding pipe metal material diversification and other excellent features, the comprehensive performance of the unit has reached international standards, the production of Ф8mm~Ф273mm welded steel pipe products of good quality, high precision, high added value, Our equipment has been exported all over the world, has been unanimously praised.
Now, our company has more than 200 employees over the world, more than 30 technical research and development personnel, while ensuring continuous product innovation, the company also has a professional after-sales service team of more than 20 people to provide global door-to-door installation and commissioning services.
Jiangsu New Victor industrial Co., Ltd. warmly welcome Chinese and foreign merchants to come to guide, negotiate cooperation, we will sincerely provide you: more durable, more high-speed, more precision high-frequency welded pipe units, Create a better tomorrow hands in hands!


After Sales Service
The sample service1.We can send you the video of the running machine.2.You are welcome to come to visit our factory,and see the machine running.
Customized service 1.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.After-sales service 1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time. 4.We provide one year warranty5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese6 .24 hours for engineer response.7 .12 Months guarantee and life-long technical support. 8.Your business relationship with us will be confidential to any third party.9. Good after-sale service offered, please get back to us if you got any questions.
Quality ControlWe have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
