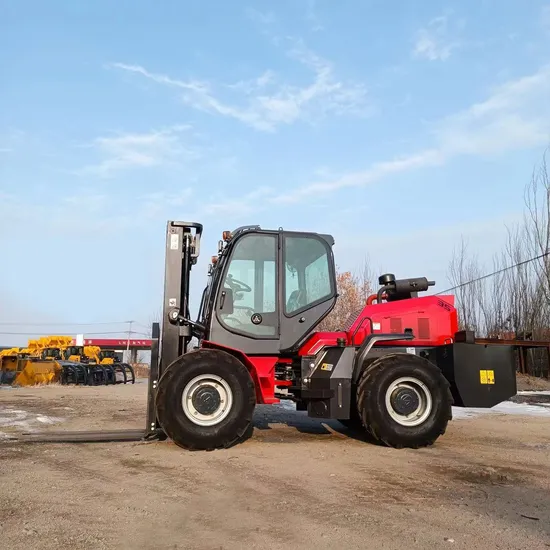

7 Ton All-Terrain Diesel Forklift Tractor with 1-Year Warranty Diesel engine
Basic Info.
Model NO.
TFR70
Cab Location
Adjustable
Type
Diesel Forklift
Load Capacity
1T - 5T
Fuel
Diesel
Load center
>500mm
Lift height
3000~5000mm
Condition
New
Minimum right angle radius width
5900mm
Outside of minimum turning radius
3900mm
Maximum traction full load/no load
65KN
Weight distribution full load front/rear
12150/950
Weight distribution no load front/rear
2250/3850
Transport Package
as Customer Requirment
Specification
3 ton lift weight
Trademark
TITANHI
Origin
China
HS Code
8427209000
Production Capacity
1000/Year
Packaging & Delivery
Package Size
5030.00cm * 2190.00cm * 2810.00cm
Package Gross Weight
7000.000kg
Product Description
7 Ton All-Terrain Diesel Forklift Tractor with 1-Year Warranty Diesel engineSource manufacturer, strictly control quality, pay attention to every detail!
Independently developed high-end gantry, using reinforced materials!
Using top-notch brand accessories, every detail is flawless!
| Specifications: | ||||
| 1.1 | Model | TFR70 | ||
| 1.2 | Power Type | Diesel | ||
| 1.3 | Rated Capacity | kg | 7000 | |
| 1.4 | Load Center Distance | mm | 500 | |
| 1.5 | ||||
| Dimension Parameter | ||||
| 2.1 | Maximum lifting height of fork shelf with blocking | mm | 4260 | |
| 2.2 | Maximum lifting height | mm | 3000 | |
| 2.3 | Full height of gantry fork landing, gantry vertical | mm | 2530 | |
| 2.4 | Free lifting height | mm | 150 | |
| 2.5 | Height of blocking rackcalculated from the fork surface of gantry | mm | 1196 | |
| 2.6 | Distance from seat surface to roof protection frame | mm | 870 | |
| 2.7 | Front overhang distance | mm | 684 | |
| 2.8 | Rear overhang | mm | 1520 | |
| 2.9 | Wheel base | mm | 2628 | |
| 2.10 | Towing pin height | mm | 820 | |
| 2.11 | Minimum ground clearance | mm | 356 | |
| 2.12 | Fork pitch outside max/min | mm | 1350/300 | |
| 2.13 | Track width front/rear | mm | 1700/1700 | |
| 2.14 | Fork size | mm | 1070*50*150 | |
| Performance Parameter | ||||
| 3.1 | Speed | Km\h | 30/35 | |
| 3.2 | Speed increase full load/no load | mm\s | 350/500 | |
| 3..3 | Speed decreasefull load/no load | mm\s | 550/450 | |
| 3.4 | Maximum climbing capacity full load/no load | % | 20/30 | |
| Tire | ||||
| 4.1 | Front Tyre | 16/70-20 | ||
| 4.2 | Rear Tyre | 16/70-20 | ||
| Drive, transmission control device | ||||
| 5.1 | Engine model | YCD4T33T6-115 | ||
| 5.2 | Reducer model | 280 | ||
| 5.3 | Engine power | kw | 90 | |
| 5.4 | Engine torque/speed | N.M | 415/1800 | |
| 5.5 | Number of transmission shifts | Front 3 and back 3 | ||
| 5.6 | ||||
| 5.7 | ||||
