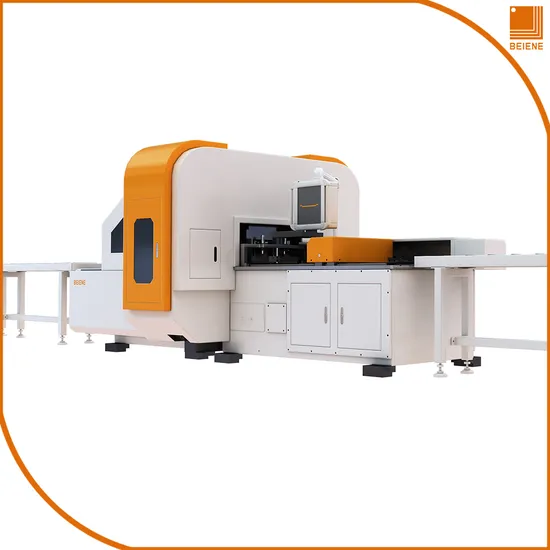

New Intelligent 3D CNC Busbar Duct Flaring Machine for Metal
| US$50,000.00-80,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
EMAC-BDM
Condition
New
Certification
ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum
Type
Cnc Bending Machine
Outside Dimension
7000X2200
Servo Control and Driver
Japan Yaskawa
Normal Force Flaring
300kn
Flaring Stroke
30 mm
Chief Clamp Stroke
1500 mm
Transport Package
Export Standard Free-Fumigation Wooden Case
Specification
Total Weight: 2700kgs
Trademark
BEIENE
Origin
Shandong, China
HS Code
8462
Production Capacity
200 Sets Per Month
Product Description
Our Advantages 1. Japan YASKAWA Servo Control and Driver
2. Friendly HMI
3. Automatic Calculate Length and Position
4. Flaring with Flexible Angle .
5. Less Labor but High Efficiency and High Accuracy
6. One Time Completed Length cutting and Flaring
Specification
| Descriptions | Unit | Data | |
| Nominal Force | Cutting | By Sawing 305mm | |
| Flaring | KN | 300 | |
| X Axis Speed | m/min | 48 | |
| Chief Clamp Stroke X1-Way | mm | 1500 | |
| Aided Clamp Stroke X2-Way | mm | 2000 | |
| Y Axis Stroke | mm | 250 | |
| Flaring Stroke | mm | 30 | |
| Station | Sawing | Set | 1 |
| Flaring | Set | 1 | |
| Tolerance | mm/m | ±0.2 | |
| Air Source | MPA | 0.6-0.8 | |
| Max Sheet Size(L×W×T) | mm | 6000×120×7mm | |
| Min Sheet Size(L×W×T) | mm | 500×50×5mm | |
| Total Power | kW | 12KW | |
| Machine Size:L×W | mm | 15000*3000mm | |
| Control Unit | ||
| No. | Descriptions | Brand |
| 1 | PLC | OMRON |
| 2 | Sensor | Telemacanique fm Schneider |
| 3 | Control Button | OMRON |
| 4 | Touch Screen | OMRON |
| 6 | AC Contactor | ABB |
| 7 | MCCB | ABB |
| 8 | Switch | OMRON |
| 9 | Hydraulic Motor | WN |
| 10 | Servo Motor | YASKAWA |
| 11 | Servo Driver | YASKAWA |
| Transmission Unit: | ||
| Serial number | Name | Brand |
| 1 | Precise Guide Rail | Taiwan HIWIN |
| 2 | Precision ball screw | Taiwan HIWIN |
| 3 | Bearing | Japan NSK |
| Hydraulic Unit: | ||
| Serial number | Name | Brand |
| 1 | Solenoid Valve | ATOS |
| 2 | High-pressure Pipe | Riva flex |
| 3 | High pressure oil pump | SG Piston of Rexroth |
| 3D Smartbar Design Software | |
| Finished Joggling |
