130ton Medical Injection Molding Machine (stable performance) for Eye Protector Goggle Safety Protective Glass Medical Eye Protector
| US$18,560.00-25,300.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ZX-130
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Motor Type
Servo Motor
Injection Weight
187-293G
Space Between Tie Bars
425 X 425mm
Product 1
Household Production, Example Crate/Fork/Toy/Cover
Product 2
Industrial Production, Example, Pipe-Fitting
Product 3
Other Production, Example Medical/Agricultural
Feature 1
High Quality, Advanced Performance, Stable Operate
Feature 2
Low Cost, Competitive Price
Feature 3
Professional and Honesty Working Service
Transport Package
Plastic Film Cover, Wood Pad, Wrapped Film
Specification
4.8 x 1.2 x 1.9 M
Trademark
HANPLAS, OEM
Origin
China
HS Code
8477101090
Production Capacity
100PCS/Month
Product Description

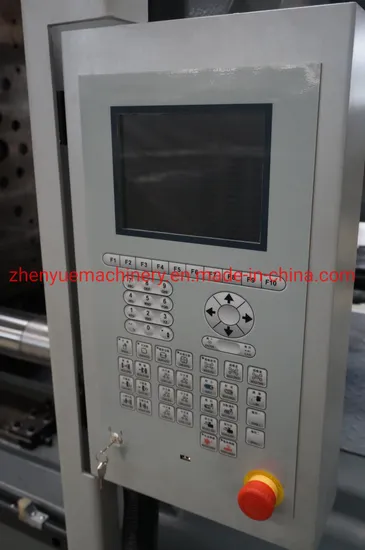

130ton Plastic Injection Molding Machine (Model: ZX-130)1,Photo of Plastic Injection Molding Machine
2, Technical Parameter of Plastic Injection Molding Machine
| ZX-130 | Injection Unit Date | A | B | C | |
| Screw diameter | mm | 36 | 40 | 45 | |
| Screw L/D ratio | / | 22 | 20 | 18 | |
| Theoretical shot volume | cm3 | 204 | 251 | 318 | |
| Shot weight(PS) | g | 187 | 231 | 293 | |
| Injection rate | g/s | 99 | 123 | 155 | |
| Max.screw speed | rpm | 270 | |||
| Clamping Unit | |||||
| Clamping force | KN | 1300 | |||
| Toggle stroke | mm | 370 | |||
| Space bettween tie bars | mm | 425x425 | |||
| Min.mold thickness | mm | 150 | |||
| Max.mold thickness | mm | 440 | |||
| Hydraulic ejection stroke | mm | 130 | |||
| Hydraulic ejection force | KN | 34 | |||
| Others | |||||
| Hydraulic system pressure | Mpa | 1705 | |||
| Pump motor | kw | 16.9 | |||
| Heating capacity | kw | 7.5 | |||
| Oil tank capacity | L | 190 | |||
| Machine dimensions | m | 4.8x1.2x1.9 | |||
| Machine weight | Ton | 3.8 | |||
3, Platen Dimension of Plastic Injection Molding Machine
4, Dimension of Plastic Injection Molding Machine
5, Technical Characteristics of Plastic Injection Molding Machine
| CLAMPING SYSTEM | -FEA designed double-toggle five-joint clamping machinery -High rigidity platen with enlarged space between tie-bar -Movable platen supported by the adjustable slide system which improves platen parallelism and life time of tie-bar and mould -Optimized lubrication system ensuring precision clamping and extending the life time of the clamping |
| INJECTION SYSTEM | -Double guide bracket structure, multipoint fixed ensure injection smoothly and accurately -High speed and high pressure adopt special injection design, improving injection speed -Injection cylinder, premold oil motor and plastic screw are in the same centreline, to enhance the injection pressure and injection speed, to achieve high precision, fast injection molding |
| HYDRAULIC SYSTEM | -Adopt the imported pump, low noise, long lifetime, stable performance -High performance hydraulic valve, less failure, fast switch, convenient maintenance -Low pressure mould protect system, which is more suitable for the precision mould -Lubrication oil in dependent lubrication system can lubricate everywhere in the best situation |
6, Manufacturer of Plastic Injection Molding Machine
7, Contact Information
Contact Person: Mr. Tony
Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012
Production: Plastic Injection Molding Machine
Remark:
1, the company reserves the right to revise all information (including word, photo) above.
2, due to technology development, the machine design or specification would be changed without any prior notice.
3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.
