Factory Supply Tractor Mouted 2t 3t 4t 5t 6t 8t 10t Trailer, Hydraulic Unloading Farm Trailer

Product Description

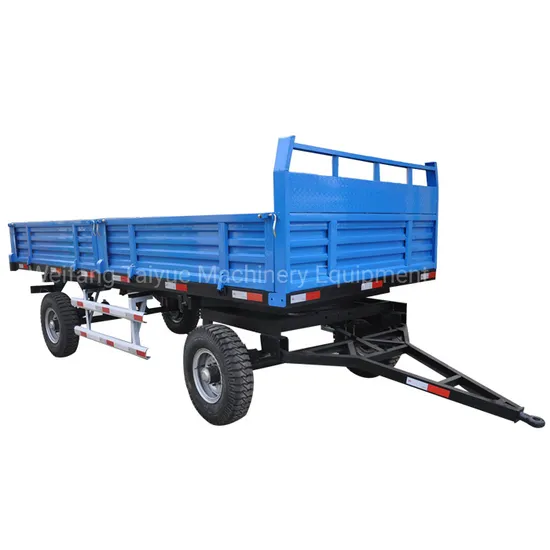

Product Description Farm trailer is towed by tractor,include single axle and double axle,2 wheel,4 wheel and 8 wheel model,can choose hydraulic unloading or self unloading.Load capacity can be 1t,2t,3t,4t,5t,6t,8t 10t ,eg.
Product Parameters Farm trailer specification

Model single axle	7CX-2	7CX-3	7CX-4	7CX-5
loading size(mm)	2400*1200*450	3000*1600*400	3200*1800*400	3600*2000*500
Outside dimension(mm)	3500*1500*1800	4200*1700*1800	4500*1900*1850	4700*2100*1600
loading capacity	2 ton	3 ton	4 ton	5 ton
Net weight	450kgs	500kgs	650kgs	1000kgs
tire/QTY	700-16 / 2	750-16 / 2	825-16 / 2	900-16 / 2
Brake forms	Air brake	Air brake	Air brake	Air brake
match power	12-20hp	15-25hp	18-40hp	25-60hp

Double axle

model	7CX-3	7CX-4	7CX-5
loading size(mm)	3200*1700*400	3800*1900*400	4000*2150*400
Outside dimension(mm)	4700*1800*1750	5100*2150*1850	5800*2250*1850
loading capacity	3 ton	4 ton	5 ton
dead weight	980kgs	1100kgs	1200kgs
tire/QTY	650-16 / 4	700-16 / 4	7.5-16 / 8
Brake forms	Air brake	Air brake	Air brake
match power	30-60hp	30-60hp	35-100hp

model	7CX-6	7CX-8	7CX-10
Loading size(mm)	4200*2150*400	5300*2150*500	5600*2150*600
Outside dimension(mm)	6300*2250*1950	7100*2250*2050	7300*2250*2250
loading capacity	6 ton	8 ton	10 ton
dead weight	1400kgs	2300kgs	3200kgs
tire/QTY	825-16 / 4	750-16 / 8	825-16 / 8
Brake forms	Air brake	Air brake	Air brake
match power	40-60hp	50-100hp	70-150hp

Packaging & Shipping Farm trailer packageing and shipping
Company Profile Weifang Taiyue Machinery Equipment Co., Ltd. is an expert agriculture machinery manufacturer, Based on facilities covering 20, 000 square meter and assets amounting USD10 million. The main products are: tractors,front loader,backhoe,wood chippers, include tractor wood chipper and self power woodchipper, trencher, seeder, farm trailer, baler machine, hay mower, hay rake, plough, harrow, and other agro implements, etc., which can be customized andprocessed according to the special requirements of customers, or OEM production can be provided.
With good quality product, reasonable price, and best after-sale service, we have gained good reputation from all over the world, such as Europe, North,America, Central and South America, Africa, Australia, New Zealand eg contiments and countires.
After Sales Service We supply 18 months warranty,any problem,free part send by air.
We can also do OEM machines for your needs,such as logo,industrial tire,package ,main part eg.
For small quantity,delivery time is 10-15 days.
FAQ Q. Are you factory or trading company ?
A: we are factory for tractor and implements,we can supply different kinds of solution for agriculture with reliable quality
and good price machines.
Q.Which payment can be acceptable ?
A: We could accept the payment by T/T, L/C etc.
Q.How about your production quality and delivery time?
A: We only do long time business coporation by supplying reliable quality,every production will be tested many times
before delivery,and can delivery goods in 10-15 days if small quantity.
Q. How about your company's service?
A: Our company supply 18 months warranty,any problem except operation mistake,will supply free part ,if needed ,will
send engineer to solve this problems overseas.We can also supply the part for machines that used for 6 years,so customer
do not worry machine use in future.
Q.How can we make sure the quality from your company?
A:We accept any trial orders ,so you can trust our company and our product quality.


Q: Can you accept customer logo eg requirent?
A:Yes,we can do as customer needs,make logo or label for customers,OEM is availible.
