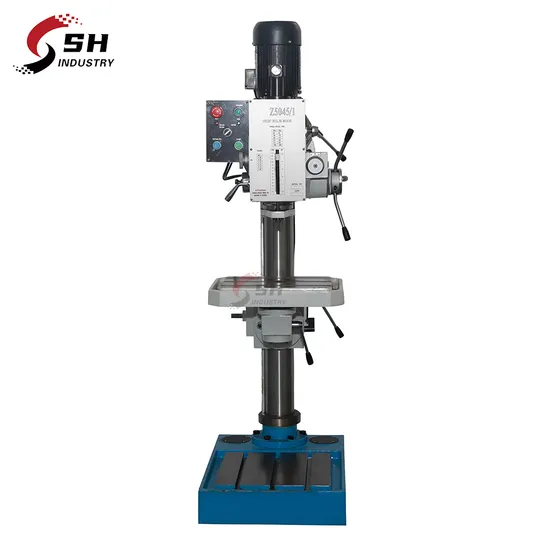

Gear Vertical Drilling Machine Z5032/1 Z5040/1 Z5045/1 Universal Metal Vertical Drilling Machine with Price

Gear Vertical Drilling Machine Z5032/1 Z5040/1 Z5045/1 Universal Metal Vertical Drilling Machine with Price

US$1,100.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z5032/1 Z5040/1 Z5045/1
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Gear Vertical Drilling Machine Z5032/1 Z5040/1 Z50
Max.Drilling Dia.
32
Spindle Taper
Mt3
Spindle Travel
130
Step of Speed
6
Step of Spindle Auto-Feeding
6
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8459290000

Packaging & Delivery

Package Size
185.00cm * 75.00cm * 100.00cm
Package Gross Weight
437.000kg

Product Description

Gear Vertical Drilling Machine Z5032/1 Z5040/1 Z5045/1 Universal Metal Vertical Drilling Machine with price
Product Description
Main technical Specifications:
Specifications Z5032/1 Z5040/1 Z5045/1
Max.drilling dia. 32mm 40mm 45mm
Spindle taper M.T.3 or R8 M.T.4 M.T.4
Spindle travel 130mm 130mm 130mm
Step of speed 6 6 6
Range of spindle speed 50Hz 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m
60Hz 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m
Step of spindle auto-feeding 6 6 6
Range of spindle auto-feeding amount 0.06-0.30mm/r 0.06-0.30mm/r 0.06-0.30mm/r
Min.distance from spindle axis to column 290mm 290mm 290mm
Max.distance from spindle nose to worktable 725mm 725mm 725mm
Max.distance from spindle nose to stand table 1125mm 1125mm 1125mm
of headstock 250mm 250mm 250mm
Swivel angle of headstock(horizontal) 360° 360° 360°
of worktable bracket 600mm 600mm 600mm
Worktable size of avaliability 380×300mm 380×300mm 380×300mm
Swivel angle of table horizontally 360° 360° 360°
Table leaned ±45° ±45° ±45°
Size of stand worktable of avaliability 417×416mm 417×416mm 417×416mm
Motor power 0.75KW(1HP) 1.1KW(1.5HP) 1.5KW(2HP)
speed of motor 1400 r.p.m 1400 r.p.m 1400 r.p.m
Cooling pump power 0.04KW 0.04KW 0.04KW
Net weight/Gross weight 437kg/487kg 442kg/492kg 442kg/492kg
Packing size 1850×750×1000mm 1850×750×1000mm 1850×750×1000mm

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
