China Top Brand Crane Liftting Machine 75ton Mobile Truck Crane Stc750

Product Description

San Stc750 75ton Mobile Truck Crane
1.Best truck crane with High quality and competitive price,
truck crane 20t,25t,30t,35t,50t,80t,100t are availiable.

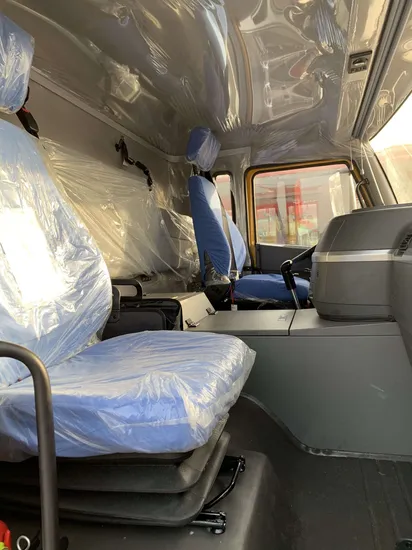

2.Our crane truck has Humanized design more comfortable.
3.TOP truck crane seller with Best after-sales.
4.Spare parts for sale too.

Sunny Feng/ Sales Manager

Max. lifting capacity 75t
Dimensions
Overall length 14100mm
Overall width 2750mm
Overall height 3850mm
Axles 4
Axle distance-1,2 1520mm
Axle distance-2,3 4400mm
Axle distance-3,4 1350mm
Weight
Overall weight 46000kg
Front axle load 20000kg
Rear axle load 26000kg
Engine
Model Cummins
Rated power 275kw/2100r/min
Rated torque 1550N·m/1200r/min
Emission standard Euro
Traveling
Max. traveling speed 80km/h
Min.turning radius 12m
Min.turning radius of boom head 15.6m
Drive train 8 × 4
Min. ground clearance 230mm
Approach angle 20 °
Departure angle 12 °
Max. gradeability 37%
Fuel consumption per 100km ≤ 55L
Main Performance
Temperature range - 20 ºC~ + 45 ºC
Min.lifting radius 3m
Tail swing radius of superstructure 4.116m
Boom section 5
Boom shape U-shaped
Max. lifting moment-Base boom 2560.2kN·m
Max. lifting moment-Full-extend boom 1254.4kN·m
Max. lifting moment-Full-extend boom+jib 414.9kN·m
Length-Base boom 11.8m
Length-Full-extend boom 45m
Length-Full-extend boom+jib 61m
Outrigger span(Longitudinal/Transversal) 6.1×7.6m
Jib offset 0 ° 15 ° 30 °
Working Speed
Max. single rope lifting speed of main winch(no load) 130m/min
Max. single rope lifting speed of auxiliary winch(no load) 130m/min
Full extend/retract time of boom 120 / 130s
Full raise/lower time of boom 80 / 80s
Swing speed 0~2 r/min
Aircondition
HVAC in up cab Cooling / Heating
HVAC in low cab Cooling / Heating
