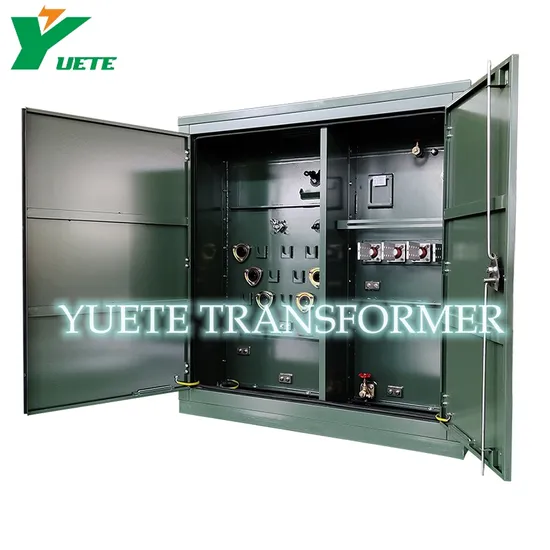

Zgs IEEE ANSI DOE Loop Feed 13.2kv 3 Phase Pad Mounted Transformer

Product Description

Three Phase Pad Mounted Transformer Product Features:
- Small with compact structure: only 1/5 to 1/3 size as the compact transformer substation(prefabricated substation) of the same rated power;
- Fully sealed and insulated; safe and reliable;
- Low loss, low noise, strong overload capacity;
- Can be equipped with load switch, bayonet fuse, current limiting fuse, oil level gauge, pressure gauge, pressure relief valve, drain valve, surge arrestors, etc;
- For its LV compartment, can be equipped with LV metering, capacitance compensation, ACB, MCCB;
- Applies corrugated heat dissipation, with special process treatment, strong anti-corrosion ability;
- Cold rolled plate, stainless steel or other materials can be selected for the enclosure.
Technical Specifications:

Model	ZGS Series
Rated capacity	100~3500kVA
Rated voltage(HV)	12kV 12.47kV 13.2kV 13.8kV 15kV 34.5kV......can be customized
Rated voltage(LV)	380V 400V 415V 416V 420V 480V 208V......can be customized
Rated frequency	50Hz / 60Hz
Vector group	Dyn11, Yyn0, Dy1, Dyn1
Winding material	Copper / Aluminium
Core material	Silicon steel
Cooling method	ONAN KNAN
Insulation level	as per IEC standard
Power frequency withstand voltage	as per IEC standard
Lightning impulse withstand voltage	as per IEC standard

Product Details: Production Equipment: Raw materials Core slitting Core cutting
Core stacking Insulating curing HV winding
LV winding Pouring Drying
Assembly Testing Warehouse Test Equipment: Test transformer Voltage ratio tester Oil dielectric strength tester
Oil dielectric resistivity tester Temperature test bench Transformer integrated test bench
Company Profile:
Guangdong Yuete Transformer Co., LTD, established in 2009, is a professional high-tech enterprise of manufacturing, researching and sales, and is located at No. 5 of Zhiye Road, Songxia Industrial Park, Shishan town, Nanhai, Foshan, Guangdong, China.
Our main products are:
-Power transformers: Oil immersed transformer, Dry type transformer, Rectifier transformer, Furnace transformer, Amorphous alloy transformer, Isolation transformer, etc.
-Box type substation: Pad mounted transformer, Compact transformer substation(Prefabricated transformer), PV substation, New energy storage substation, etc.
-Switchgear: High voltage switchgear, Low voltage switchgear
Our products are widely used in Southeast Asia, Africa, North America, South America, Middle East, Middle Asia, etc. We have complete and effective quality control system and test system, strictly based on IEC standard, IEEE standard, ANSI standard. We have ISO, CQC, Type test report, which enhance our company's competitiveness and realize the sustainability of our development.
We have over 300 employees, most of the engineering and technical staff and production staff are senior engineers and production experts who have been working in the industry for more than 10 years. Driven to provide clients with good-quality products and technical support, we offer thoughtful and rapid pre-sales and after-sales one-package services.
Certificates:
FAQ
1. Q: Are you a manufacturer? A: Yes, we are a professional manufacturer, specializing in Oil immersed transformer, Dry type transformer, Amorphous alloy transformer, Pad mounted transformer, Compact transformer substation, Isolation transformer, OLTC transformers, Furnace transformers, Rectifier transformers, Switchgears, Circuit breaker, etc for over 14 years.
2. Q: What is the MOQ? A: We accept OEM/ODM projects. The MOQ=1 unit. It would be great if you can provide technical drawing and technical specification document. If not, you can contact us for further communication.
3. Q: What is the production time? A: It will take about 25-30 days based on the order requirements.
4. Q: What is the payment terms? A: T/T, LC or Cash
5. Q: How long is the guarantee? A: We offer 12 months(1 year) guarantee.
6. Q: How can I trust you? A: We are the audited diamond supplier of Made-In-China. Our products are widely used in Southeast Asia, Africa, North America, South America, Middle East, Middle Asia, etc. We have complete and effective quality control system and test system, strictly based on IEC standard, IEEE standard, ANSI standard. We have ISO, CE, CCC, CQC, Type test report, which enhance our company's competitiveness and realize the sustainability of our development.
