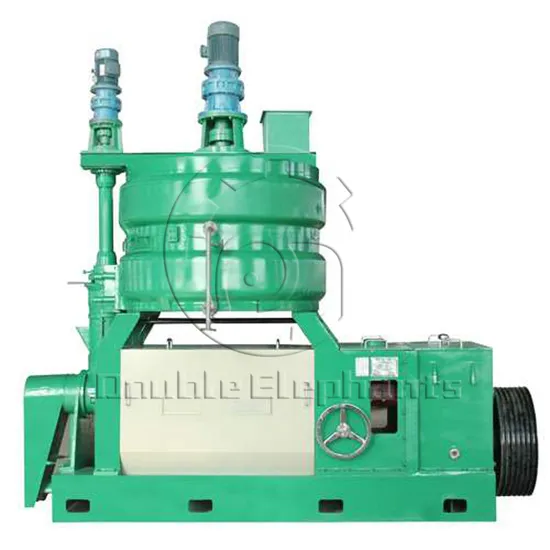

Zy202-3 Big Soybean Cottonseed Canola Oil Mill Expeller Extraction Machine

Product Description

200A-3 Sunflower/Soybean/Peanut/Palm/Cottonseeds big Capacity cold press automatic oil press oil extractor machineProduct Description This System oil expeller is approved product by our country many years ago and enjoy great popularity all over the world, it is the best choice for the small and middle oil plant. It's suitable for once press, such as rapeseed, cottonseed, tungseed, sunflower seed, cottonseed and other high oil contained plants. It has rational construction, unfailing performance, easy operation, maintenance convenience, efficient production, combined steaming and roasting.

FEATURES
1. All such main parts of this machine as worm shaft, pressing worms, cage and so forth are made of high-grade alloy steel through hardening treatment. As a result, in spite of the conditions of high temperature and abrasion under which they work day and night, hey keep durable for a considerable period.
2. The combine of steaming and roasting is also one of the features of this machine. It can be regulated in accordance with the varied requirements of various oil-bearing materials for the temperatures before pressing so as to get high quality oils.
3.The whole process from feeding steaming, roasting up to the discharge of oil and cake goes on automatically and continuously, so it is easy to operate the machine, which results in the caving of labor.
4. Steam pressure 5-6kg/cm2, Pressing worm speed: 8rpm;Seed steaming and roasting time: 90min;Max. temperature for seed steaming and roasting:125-128ºC.

200A-3 big Capacity Oil Press Main Date
Capacity	9-12T/D(Residue in cake: 6-7%)
Inside diameter of steam cooker	φ1220mm
Stirring shaft speed	35 rpm
Steam pressure	5-6kg/cm2
Pressing bores	sectionφ180 mm; Rear section φ152 mm
Pressing worm speed	8 rpm
Feed shaft speed	69 rpm
Pressing time in cape	2.5 min
Seed steaming and roasting time	90 min
Max. temperature for seed steaming and roasting	125-128 ºC
Power demand	18.5 kw
Overall dimensions (L×W×H)	2850×1850×3270mm
Weight:	5600 kg

Our Services
Packaging & Shipping
Company Information Henan Double Elephants Machinery I/E CO.,LTD
A professional collection of research ,design, production and sales of Oil making machine,animal food machine ,extruder machine for pet and snacks,and many other kind of food machine.
Our company has a big manufacturing factory with 40 years rich experiences based on one original machinery started by our government machinery department, we adopts advanced production technology, sophisticated equipment and have won abundant strength after many years of development accumulation.
Our puffed machinery has won the 1999 best national evaluation,and passed the ISO 9001 International Quality Authentication in 2000.More proudly, we have achieved the CE certificate to convenient more European customers.
Customer Vist
CE&ISO Certification
