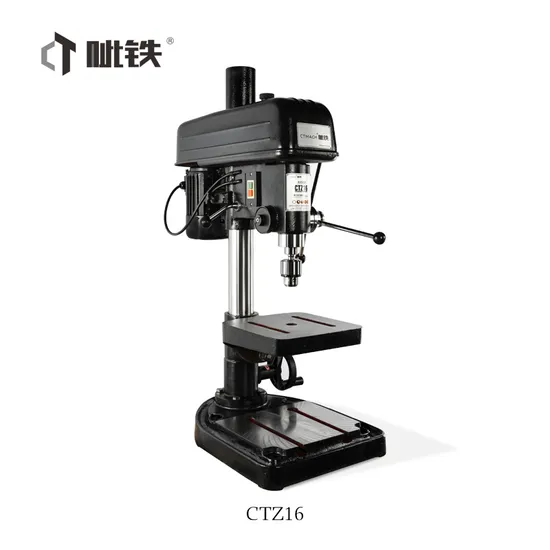

Table Drilling Machine Floor Bench Drill Press for Sale Durable Using Low Price 16mm Drilling Machine Ctz16
Basic Info.
Model NO.
CTZ16
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
698*390*1080mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Product Description
| CTZ16 | CTZ25 | |
| Max.Drilling capacity | 16mm | 25mm |
| Column Diameter | 70mm | 85mm |
| Table size | 265x265mm | 290x320mm |
| Bottom worktable size | 250x300mm | 335x335mm |
| Spindle taper | MT2 | MT3 |
| Spindle travel | 100mm | 125mm |
| Distance from spindle to column guide rail | 193mm | 242.5mm |
| Distance from spindle end to table surface | 0~255mm | 0~265mm |
| Distance from spindle end to base working surface | 250-500mm | 265-545mm |
| Spindle speeds | 480~4100 rpm | 340~1800 rpm |
| Motor Power | 0.55KW | 1.1KW |
| Net weight/Gross weight | 115/100kg | 160/140kg |
| Overall dimensions | 390*698*1080mm | 400*760*1120mm |
| Package Size | 800x424x962mm | 860x476x1013mm |
