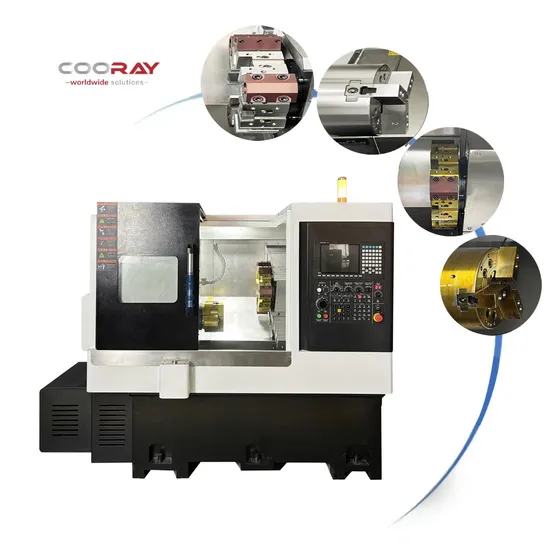

Cooray Crl52t Static Turret Slant Bed Tailstock Fanuc CNC Turning Lathe
| US$100,000.00-200,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CRL52T
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Transport Package
The Two Sides Negotiate Logistics.
Trademark
COORAY
Origin
China
HS Code
84609090
Production Capacity
5000
Packaging & Delivery
Package Size
240.00cm * 165.00cm * 180.00cm
Package Gross Weight
4100.000kg
Product Description
Product Description| roject | unit | specifications | remarks |
| tactical diameter | mm | 550 | |
| X-axis travel | mm | 240 | |
| Z-axis travel | mm | 500 | Disk end face to blade tip |
| Maximum cutting diameter | mm | 260 | |
| maximum machining length | mm | 460 | The end face of the claw to the tip of the knife |
| Standard processing diameter | mm | 160 | |
| Main axis form | A2-6 | extended edition | |
| Pull pipe through hole | mm | 52 | |
| Main shaft through hole | mm | 66 | |
| main shaft speed | R/min | 50-3000 | Low center of gravity and high rigidity |
| Drive head speed | R/min | 5000 | |
| diameter of chuck | Inch/mm | 8 inches / 200 | cavity |
| X-axis quick move | m/min | 15-25 | Re-prepress roller guide |
| Z-axis quick movement | m/min | 15-25 | Re-prepress roller guide rail |
| X, Z axis repeatability | mm | +0.005-0.008 | |
| X, Z axis positioning accuracy | mm | +0.005-0.008 | |
| Blade holder form / Blade disc diameter | mm | 12 stations /330 | 0°/90° power knife holder Er32 |
| Tail end journey | mm | 300 | |
| Tail seat sleeve travel | mm | 100 | |
| Tail seat sleeve taper | MT. | Mos 5 | |
| tool dimension | mm | 25*25 | Standard 2 square, 2 end face knife holder |
| Diameter of boring bar | mm | 32 | Two round knife seats are standard |
| Power knife holder/tube clamp | Er | BMT55/32 | User selection (BMT55) |
| Machine tool gross weight | Kg | 4100 | |
| Machine tool size length/width/height | mm | 2400/1650/1800 |
