Advanced Vertical Plastic Injection Molding Equipment for Industrial Production
| US$8,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
LTY-30
Type
Plastic Product Injection
Structure
Vertical
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Transport Package
Wrap Film Packing Into The Container
Specification
30T
Trademark
LOYALTY
Origin
China
HS Code
8477101090
Production Capacity
1000sets/Years
Product Description

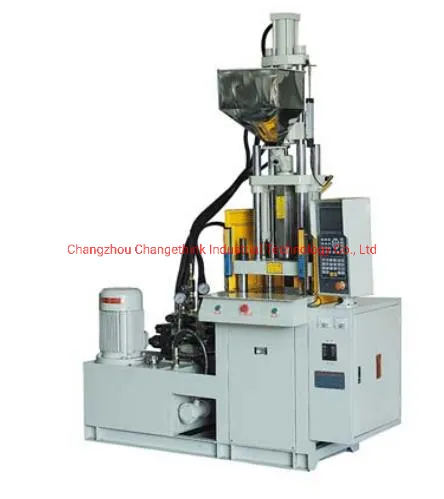

This machine is vertical plastic injection molding machine 30T to make small injection molding parts.| LTY-HD60S | ||
| Screw Diameter | mm | 38 |
| Theoretical injection volume | cm³ | 136 |
| Shot speed | cm³/s | 180 |
| Shot weight | g | 125 |
| Injection pressure | Kgf/cm² | 1160 |
| Clamping type | _____ | |
| Ejector stroke | mm | 40 |
Eject stroke | T | 2.2 |
| Clamping force | ton | 65 |
| Open stroke | mm | 250 |
| Max mold height | mm | 500 |
| Space between tie-bar | mm | 460*310 |
| Motor power | kw | 11 |
Heating power | kw | 6.8 |
| Machine weight | ton | 2.1 |
Ejector stroke | mm | 40 |
| Product | Plastic injection molding machine |
| COMPUTER | SHENZHEN PORCHESON |
| H.PRESURE PUMP | KEISTER |
| MAGNETIC VALVE | ROUTH |
| PROPORTION VALVE | ROUTH |
| OIL MOTOR | DERSEN |
| SCREW AND HOPPER | ALLOY SCREW |
| LINEAR POSITION SENSOR | SONSEIKO |
| OIL SEALLING | NOK(JAPAN) FOR THE WHOLE MACHINE |
| MOTOR | JIANGSU HAODE |
| AC CONTACTOR | CHNT |
| Model | unit | LTY-HD45T | |
| Injection system | Screw diameter | mm | ¢32 |
| Screw L/D ratio | L/D | 18.9 | |
| Theoretical shot volume | cm3 | 104 | |
| Shot weight | g | 99 | |
| Injection pressure | Kgf/cm2 | 1450 | |
| Injection speed | cm3/s | 79 | |
| Clamping Unit | Clamping force | ton | 45 |
| Min mold height | mm | 150/250 | |
| Max mold height | mm | 375/475 | |
| Opening stroke | mm | 200 | |
| Distance Between Tie Bar | mm | 410*250 | |
| Ejector stork | mm | 40 | |
| (Others) | Pump motor power | KW | 3.6 |
| Motor power | KW | 5.5 | |
| Machine weight | ton | 1.5 | |
| Machine size | m | 1.4*1.1*2.4 | |
