20cbm Bedding Spreader Side Shooter Sand Spreader for Cow Bedding for Livestock and Dairy Farm

20cbm Bedding Spreader Side Shooter Sand Spreader for Cow Bedding for Livestock and Dairy Farm

US$29,800.00
1-9 Pieces
US$24,900.00
10+ Pieces

Basic Info.

Model NO.
9PS-20
Usage
Bedding Spreader
Application
Cow
Power Source
Diesel
Heating and Ventilation Equipment Type
Customized
Epidemic Prevention Equipment
Customized
Blade Type
Customized
Computerized
Non-Computerized
Certification
QS, GMP, ISO9001:2008, CE
Warranty
1 Year
Transport Package
Wooden Pallet
Specification
7500*2450*3200mm
Trademark
IMETEC
Origin
Tan′an, China
Production Capacity
100000 PCS/Year

Product Description

Product Description

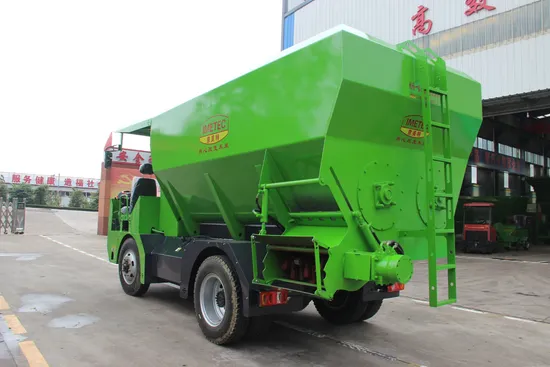

20m³ Bedding Spreader for large farms

Overall Dimension 7500*2450*3200mm
Vehicle Brand Foton Motor
Engine Power 191KW
Discharge Style Scraper Chain
Material Throwing Style Belt
Transmission Mechanism Fully Hydraulic Control
Box thickness 3.5mm
Bottom plate material Manganese Plate
Bottom plate thickness 5mm

The chassis adopts high-quality brand chassis such as Foton Aumark series which is solid and reliable
The engine adopts the first-line brand Yunnei engine, which is powerful and has a low failure rate.
The belt-type throwing structure makes the material throw farther and more evenly.
The material is transported in the box by chain and scrapper, which has the advantages of simple structure and low failure rate, thus greatly improving the stability of the equipment.
The chain is driven by hydraulic transmission, and multiple or different models of motors are set up according to different loads to achieve different torque changes.
Product Overview:
The bed spreader is a kind of spreader used in modern large-scale farms. Its main function is to spread sand, rice husks, cow dung and other bedding materials evenly on the cow bedding, improve the cow's comfort, reduce the incidence of diseases such as mastitis, and increase milk production.

Characteristics of Light, Medium, and Heavy Trucks
1. This Spreader is suitable for 1,000-5,000 cows.
2. The truck chassis is designed for high transport capacity and rapid distribution.
3. The conveying and spreading system features full hydraulic transmission, ensuring uniform spreading.
4. Excellent driving room which is comfortable, making it ideal for medium to large-scale ranches.
Note: Customized chassis vehicles can be designed based on user specifications.

Detailed Photos

Company Profile
IMETEC Intelligent Equipment (Shandong) Group Co., Ltd. is a national high-tech enterprise specializing in the production, R&D and export of intelligent equipment for dairy farms.
Focusing on pasture intelligent equipment for 25 years, has won the Shandong Province, "Specialized, Specialized and New", science and technology-based small and medium-sized enterprises, the provincial livestock science and technology, the third prize, the Chinese dairy industry excellent supplier, a member of the China Agricultural Reclamation Union, selected by the CCTV "Brand Strong Preferred Demonstration Project". Vice president, executive and director of China Dairy Association, China Cattle Industry, China Sheep Industry, Inner Mongolia, Heilongjiang, Ningxia, Shandong and other dairy industry associations.
Comprehensively passed the IS09001:2015 international quality management system and the European Union CE certification, IMETEC trademark has passed the Madrid International Trademark Registration with the Ministry of Agriculture and Rural Affairs of Nanjing, Shandong Agricultural University, Shandong University, Shandong Agricultural Machinery Institute and other scientific research institutes, breakthroughs in foreign necks more than ten, currently has a total of 108 patents of invention, utility model, design, and lead the drafting of the industry standard two, four group standards. Industry standards two, four group standards. 2023 December 12 Chen Ping, vice governor of the province led a team to visit the Italian Meitei, at the same time, sure that the Italian Meitei in the animal husbandry industry, high-quality development, the full affirmation of the intelligent lead the future practice.
The products cover: from self-propelled full series of TMR feed mixing, leftover material collection, intelligent pushing, material throwing, manure return to the field, palletizing and crushing, etc. 8 categories of more than 200 models, four categories of 57 models of products, has entered the national agricultural machinery subsidies to promote the catalog.
Exhibition Photos
FAQ
Q: Are you manufacture
A: Yes,we are factory with more than 8 years of manufacturing experience .
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is your terms of delivery?
A:EXW, FOB,CFR, CIF.
Q: How about your delivery time?
A:Generally,it will take 7-10 working days after receiving your
Q: What is your terms of packing?
A:Generally, we use standard exported wooden case for LCL goods
Q: Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.
