12V 1A AC DC Wall Travel Charger CCTV LCD LED Router Phone Power Supply 5V 6V 8V 9V 10V 14V 15V 18V 20V 24V 36V 0.5A 1.5A 2A 2.5A 3A 4A Switching Power Adapter

Product Description

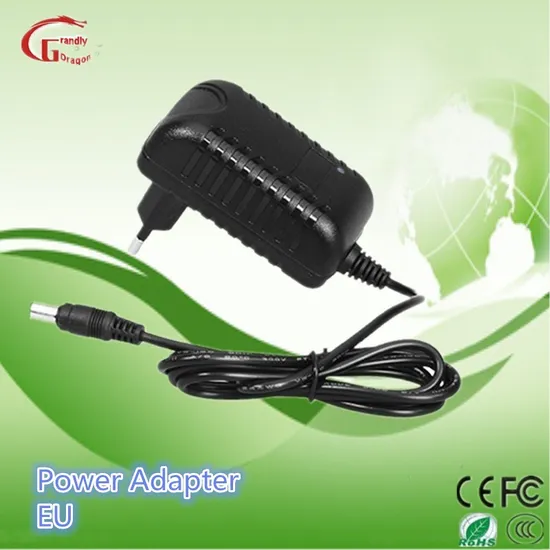

12V 1A AC DC Wall Travel Charger CCTV LCD LED Router Phone Power Supply Switching
Power Adapter
Specifications:

Safety Approvals Input Voltage Range		100~240Vac
Operate Voltage Range		90~264Vac
Input Frequency		50/60Hz
Output Power		12W
Output Voltage		12VDC +/-5%
Output Current		1A
Input Current Low Line	Io=Full load, Vin=100VAC	2.5A
Input Current High Line	Io=Full load, Vin=240VAC	1.2A
Inrush Current Low Line	Io=Full load, 25ºC ,Cool start,Vin=115Vac	30A
Inrush Current High Line	Io=Full load, 25ºC ,Cool start,Vin=230Vac	40A
Efficiency	Io=Full load,Vin=230Vac	88%
Line Regulation	Io=Full load	0.5~2%
Load Regulation	Vin=230Vac	4~5%
Over Current Protection	Auto recovery	120~150%
Time of Transient Response	Io=Full load to Hakf Load, Vin=100Vac	4mS Max.
Hold-up Time	Io=Full load, Vin=110Vac	10mS Min.
Start Up Time	Io=Full load, Vin=100Vac	3S Max.
Ripple & Noise Peak to Peak	Io=Full load, Vin=90Vac	1% Max.
Safety Ground Leakage Current	Vin=240Vac/60Hz	0.75A Max.
Temperature Coefficinet	All output	+/-0.04%/ºC
No-Load Power Consumption	No load, Vin=230Vac	0.21W
Dielectric Withstanding Voltage	Primary to secondary	3750Vac Min./3S
Safety Protection	OCP/OVP/SCP/OTP/LVP/OLP
Warranty	2 years
Certificate	CE,FCC,ROHS,KC,PSE

FAQ
Q: Are you a trading company or a manufacturer ?
A: We are manufacturer of more than 20 years' experience
Q:How do you control the quality ?
A:We have QC team comply with TQM to ensure the quality , Each step is compliance to the standards,at the same time ,we will take photoes and shoot video for you if you need
Q: Why should i choose your company
A: Superior quality and low price ,professional technical team ,rich experience ,timely delivery time ,excelent after-sales service ,good reputation and credit
Q: What is the lead time
A: The lead time depends on the quantities ordered ,generally within 7-20days after receiving payment
Q: do you inspect the finished products
A: yes, each step of production and finished products will be came out inspection by QC department before shipping ,and we will provide goods inspection reports for your reference before shipment .
