Factory Price High Efficiency Suction Cup Electric Outdoors 400kg Glass Lifter

Product Description

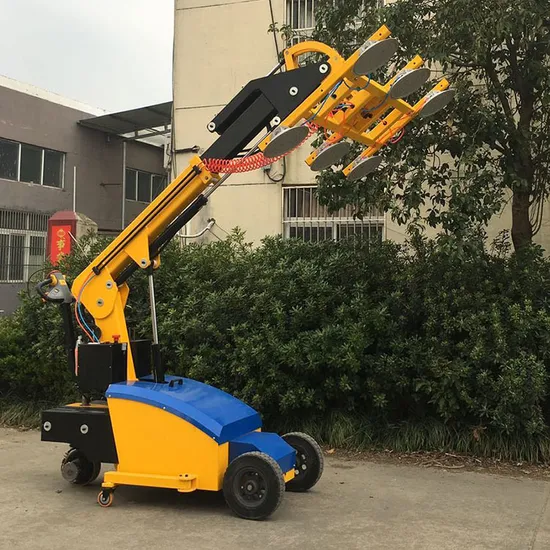

Heavy Capacity Electric Power Glass Robot Vacuum Lifter
Vacuum lifter has many advantages, such as saving time, labor and cost, easy to use, no pollution; Small and light, single operation, lossless porters, imported oil-free vacuum pump; With ergonomic design, sound and light alarm system, energy storage device, high safety, long service life and so on; Cooperate with the truck to form a complete lifting handling solution.
Widely used:
Steel plate, aluminum plate, copper plate, plastic plate, sandwich plate, composite plate, stone, glass, glass curtain wall, iron coil, aluminum coil, steel pipe, concrete prefabricated parts, etc.; Suitable for all kinds of workpiece with flat and compact surface and regular shape.

Advantages
1. Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.
2. Efficient and precise. Self propelling, various circuit vacuum suction.
3. Attractive price, staff saving, strong improvement of working environment.
4. The vacuum lifter are dealt with shot blasting and stoving varnish, high anti-corrosion function.
5. High quality pump station make the vacuum lifter lifts and falls very stably.
6. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
7. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
8. Brief structure make it much easier to operate and maintain.
Professional R&D team
Years of manufacturing experience
1) Assemble high-quality vacuum power unit
2) Adjustable pad/beam with spring pad
3) More pad design can maintain balance and safe handling
4) The ball valve control pads are placed separately, suitable for glass plates of different sizes
5) Double control and security measures
6) The vacuum pump starts intermittently and can be used for a long time
7) The suction cup is rotatable and easy to operate
8) Super surface treatment, beautiful

Model	NE-GR-30	NE-GR-40	E-GR-50	E-GR-60	E-GR-80
Retract cap.	300kg	400kg	500kg	600kg	800kg
Manual rotating	360°				360°
rotation and side rotation function	Manual				Manual
Overturn up and down	Electric				Electric
Lift height	3500mm				5000mm
Manipulation	Walkie type				Walkie type
Battery	2x12V/80Ah	2x12V/100Ah	2x12V/120Ah	2x12V/120Ah	2x12V/150Ah
Charger	24V/12A	24V/15A	24V/18A	24V/18A	24V/18A
Drive motor	DC24V/1200W	DC24V/1200W	DC24V/1500W	DC24V/1500W	DC24V/1500W
Lift motor	24V/2000W	24V/2000W	24V/2200W	24V/2200W	24V/2200W
Overall width	840mm	840mm	840mm	840mm	840mm
Overall length	2660mm	2660mm	2800mm	2800mm	2800mm
Front wheel size/quantity	400*80mm	400*80mm	400*90mm/1	400*8-90mm/2	400*8-90mm/2
Driving wheel dimension	250*80mm	250*80mm	300*100mm	300*100mm	300*100mm
Pads diameters	300mm/4pieces	300mm/4pieces	300mm/6pieces	300mm/6pieces	300mm/8pieces

After-Sales Service
Our after-sales service provide:
1.14 months warranty when products leave the factory, or 12 months warranty after installation
2. 2 years spare-parts provided for better maintenance.
3.Professional technical staffs provide installation, commissioning and training services.
4.Delivery with English user manual, parts manual, product certification and other relevant certificates.
5.Technical advisory for any time and Engineers available to service machinery overseas.
