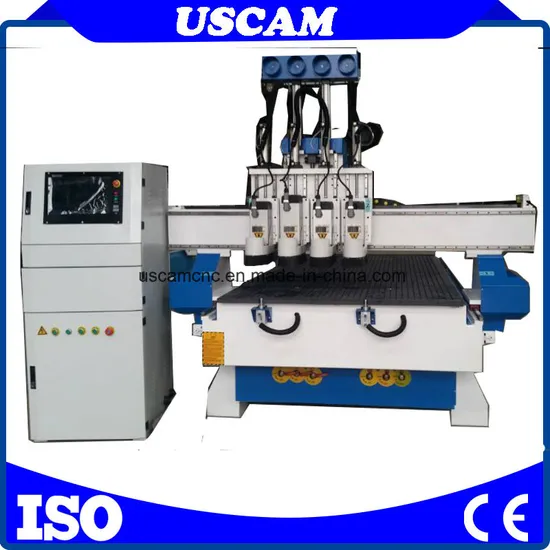

Top Quality CNC Woodworking CNC Boring Machine with Drilling Head

Product Description

Features of Three Process CNC Router Machine
1. Suitable for diversified and complex processing, widely used for carving, drilling, cutting, side milling,
guiding edge, and mainly used for cutting and wood routing.
2.German-imported vacuum system, Japanese imported servo driving system, air coolingspindle.
3. With positioning cylinder to adjusting the material
4. Double rails and double sides driving system, heavy-cutting working machine.
5. Vacuum absorption, cutting directly on the lathe, with out mould making.
6. Dual dust collector with dust changing over function to improve absorption.
Technology Parmeter

X,Y,Z Working Area	1300x2500x200mm
Spindle	The middle is 4.5kw, the two sides are 3.5kw.
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
Lathe Structure	Welded Structure
Transmission	X,Y AXIS--Rack transmission, Z AXIS----ball screw tranmission
Max. Consume power	5.0kw
Max. Speed	0-32000mm/min
Max. Working Speed	0-20000mm/min
Spindle Power Motor	Servo
Spindle Speed	0-24000RMP
Working Mode	air cooling
Working Voltage	AC220V/ 380V /50HZ /60Hz
Command	G Code, *uoo, *mmg, *plt
Operating System	DSP System (Option: Mach3 PC Software)
Flash Memory	32M
Collet	ER25
Software	Ucancam software, Artcam software, Option
Running circumstance	Temperature: 0°C~45°C, Relative humidity: 30%~75%
Packing Size	3150*2260*2300mm
Net Weight	1227kg
Gross Weight	1240kg

Sample of cnc router cutting engraving machine
#Woodworking industry: MDF, Fibreboard, Particleboard, Hollow carving of synthetic plate, Cabinetdoor, Solid wood door, Wooden craft door, Paint-free door, Screen, Process fan window processing, Shoeshine machine, Game console cabinet and panel, Mahjong table , Computer tables and furniture products plate auxiliary processing.
#Advertising industry: advertising signs, logo production, acrylic cutting, plastic molding, a variety of
materials advertising decorative products production
#Other industries: You can carve all kinds of large relief, shadow carving, widely used in craft gift industry
After Service 1.1.5years quality guaranty, the machine with main parts(excluding the consumables) shall be
changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery
7.Our staff can be sent to your company to install or adjust if necessary.
Packing and shipping
1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the procedure is simple.
4. Delivery Detail: within 7-15 days after received your payment
About Payment
We accept T/T , you can pay 30% in advance, 70% before delivery.
The machine will be produced after received your deposit.after the machine is ready, we will show you the
machine photos and the testing video.
After you agree, please finish the balance.Finally.we arrange the delivery.
FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is
covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by
thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have
full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry,
you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will
send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or
someone else. We will response within 24 hours as quick as we can to solve it for you.
