2021 New Type 3 in 1 Clo2 CO2 Co Multi-Gas Analyser Meter Leakage Analyzer Detector Device

Product Description

Product Description Product overview

SKY3000 series is a high-performance portable gas detector that can detect multiple gases (volatile organic compounds VOC, combustible gas and toxic gas) at the same time and has man down alarm function. The device has humanized operation functions such as one-key security detection, one-key storage, automatic image flipping, as well as the man down alarm function.; With optional Bluetooth transmission function, allowing safety personnel to obtain real-time data and the alarm status. It has obtained international IECEX, ATEX explosion-proof certification and Chinese explosion-proof certification; As it passed the antistatic test, and the protection level reaches IP67; With safer product design and the module design which makes the detection faster, and the compact ergonomic design makes the device easy carrying; What's more, the device is also a suction and diffusion dual-purpose instrument. The instrument is mainly working in suction mode. When the air pump fails or in special emergency situations, it can automatically switch to the diffusion sampling method, thereby improving the protection to a new Level.
The explosion-proof mark of the SKY3000 series is Ex ia IIC T4 Ga, which is applicable to the explosive gas mixture zone 0, zone 1, and zone 2 of the factory with grades A, B, and C and temperature group T1~T4.
Specificiation

Sampling method	pump suction & diffusion dual-use type
Gas type	CLO2 CO2 CO
Measure range	Optional
Response time	≤30 seconds
Precsiion	≤±2%F.S
Language	English
Automatically test and calibrate after power-on	Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit	PPM and mg/m³ can be switched
Disaply	monochrome graphics (160 x96) ,screen can be automatically flipped
Backlight	The backlight time can be manually set, and will be turned on automatically when an alarm is issued
Data record	Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported
Alarm	95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function
Battery	3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours	More than 15 hours in continuous pumping mode
Charger	Travel charger with DC interface, charging time ≥ 4 hours
Explosion-proof grade	IECEX/ATEX(II IG Ex ia IIC T4 CNEX:Ex ia IIC T4 Ga
Certification (EU regulations)	2004/108/EC(EMC) 1995/5/EC(Radio) 94/9/EC(ATEX)
Protection grade	IP67
Working temperature	-20ºC~+50ºC
Humidity	0~90%RH(no condensation)
Environmental pressure	86~106Kpa
Size	157*84.5*59.5mm (including back clip/water trap filter) (length * width * height)
Weight	365g (including battery, belt clip and filter)

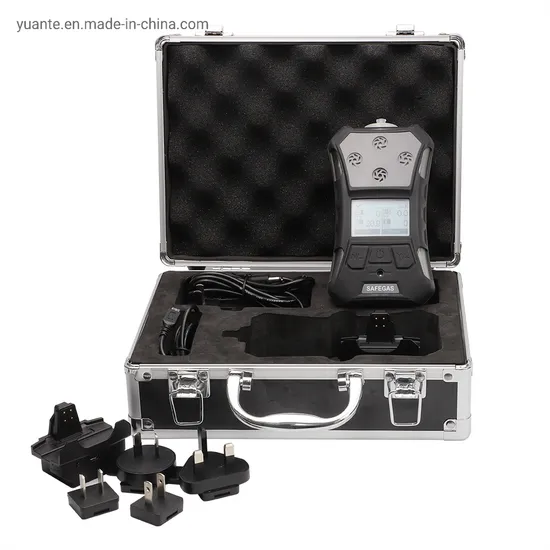

Package Product characteristic 1.Rugged and durable
2.Explosion-proof circuit design, safe and reliable
3.Multiple security protection
4.Simultaneous measurement of multiple gases, multiple numerical display
5.Simultaneous measurement of multiple gases, multiple numerical display
6.Powerful function, more user-friendly operation
Company information
FAQ
1. Can I have a sample order?
Yes, we welcome sample order to test and check quality
2. What is the lead time
Usually, we will ship in 3 days, for big quantity orders, the delivery time is negotiable.
3. Do you have any MOQ limit?
We don't have a MOQ limit, 1pc is also welcome
4. Do you offer guarantee for the gas detectors?
Yes, we offer one year guarantee for all the detectors, we also provide life-long paid service. As an experienced manufacturer, you can rest assured of the quality and after-sale service.
