US$500.00-2,000.00
|
1 set
(MOQ)
|
Basic Info.
Pressure Loading
Automatic Loading Pressure (by Hydraulic)
Display
8 Inch Touch Screen
Mosaic Temperature Range
35-200 Degree Adjustable
Transport Package
Plywood Case
Specification
625*583*565mm
Production Capacity
500sets/Month
Product Description

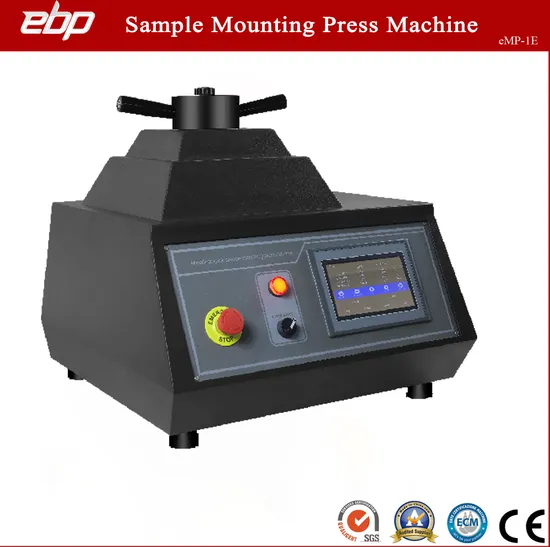

Product Description Hydraulic Automatic Metallographic Sample Mounting Press Machine
Main Features:
Hydraulic system control, more high working efficiency Touch screen programmable control Automatic hot mounting press process Equipped emergency stop button, safe operation With water cooling system, fast cooling down Interchangeable mold assembly kits Ø25 / 30 / 40 / 50mm Product Parameters Main Parameters:
Model | eMP-1E |
Mold diameter | Ø25mm, Ø30mm, Ø40mm, Ø50mm |
Mold cavity height | 135mm, effective height 80mm, Support double spacer (2 samples) |
Mounting programming | Programmable database, can store 10 groups of Mounting programs |
Pressure setting range | 0-10MPa adjustable |
Heater power | 1.5KW, total system 1.8KW |
Mounting temperature range | 35-200ºC adjustable |
Pressure holding time range | 1- 99min |
Pressure Loading | Automatic loading pressure (by hydraulic system) |
Automatic cooling down time range | 0 - 60min |
Cooling | Water cooling (Chiller as optional purchase) |
Mounting program | Can save 10 groups mounting programs |
Operation and display mode | 8 inch touch screen |
Power supply | AC220V 50HZ |
Dimension & N/W | 625*583*565mm; 83kg |
Packing size & G/W | 915*710*797mm, 104kg |
Standard Accessories:
Item | Quantity |
Dia.30mm mold (installed on machine) | 1 |
Feed powder spoon | 1 |
Water inlet | 1 |
Drain-pipe | 1 |
Brush | 1 |
Manual book and certificate | 1 |
