Closed-Loop Control Nc Blin Wooden Case CNC Machining Center Lathe Machine

Closed-Loop Control Nc Blin Wooden Case CNC Machining Center Lathe Machine

US$30,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
BL-CKL6163/6180A/6180B/61100
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
NC
Processing Precision
0.01~0.02(mm)
Performance Classification
Mid-Range CNC Machine Tools
Certification
CE
Condition
New
Guideway Width
550/600mm
Max. Swing Dia. Over Bed
630/800/1000mm
Center Distance
1000/1500/2000/3000/4000/5000/6000mm
Spindle Bore
104mm
Spindle Speed
10-1000rpm
Chuck Size
315/400mm
Spindle Motor
11/15kw
Transport Package
Wooden Case
Specification
630/800/1000*1000/1500/2000/3000/4000/5000/6000mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480 Units/Year

Packaging & Delivery

Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

Product Description

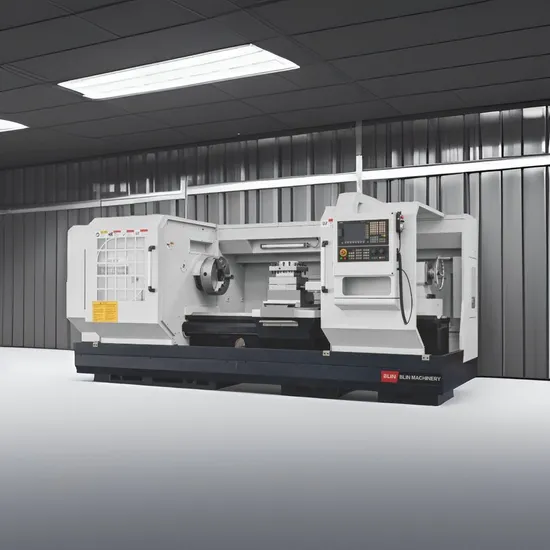

Heavy Duty Flat Bed CNC Lathe Machine (BL-CKL6163/6180A/6180B/61100)
- Guideway width 550/600mm,spindle bore Φ104mm,heavy-duty type,suitable for heavy cutting
- Adopt China top quality compound resin sand cast iron,after aging treatment,good precision keeping
- Guideway hardened by ultrasonic frequency, good precision keeping, long using lifespan
- Guideway stick PTFE,remove creeping,good wearability
- Adopt Manual 3 class gear spindle, stepless speed in every class,can also choose Hydraulic 4 class
Item Specification Unit BL-CKL6163 BL-CKL6180A BL-CKL6180B BL-CKL61100
Capacity Guideway width mm 550 600
Max. swing dia. over bed mm Φ630 Φ800 Φ800 Φ1000
Max. swing dia. over slide mm Φ350 Φ520 Φ480 Φ680
Center distance mm 1000/1500/2000/3000/4000/5000/6000
Max. loading capacity t 3 4
Spindle Spindle bore mm Φ104
Spindle bore taper / Metric Φ120 MT5#
Spindle speed rpm 10~1000(manual 3 class gears,stepless in every class) 10~800(manual 3 class gears,stepless in every class)
Spindle nose type / C11
Chuck size mm Manual 3-jaw Φ315 Manual 3-jaw Φ400
Spindle motor kw 11 15
Feeding axes X axes travel mm 320 420 420 520
Z axes travel mm 850/1350/1850/2850/3850/4850/5850
X/Z axes rapid rate m/min 4/6
Tool post Tool post type mm 4 station electric tool post
Toolshank size mm 32×32 32×32 32×32 40×40
Tailstock Tailstock quill travel mm 250
Tailstock quill dia. mm Φ100 Φ120
Tailstock quill taper / MT5# MT6#
Overall size L mm 3300/3800/4300/5300/6300/
7300/8300
3500/4000/4500/5500/6500/7500/8500
W×H mm 1750×1850 1850×1900 1950×1900 2000×2100
Weight N.W. T 3.7/4.1/4.5/5.3/6.1/6.9/7.7 3.9/4.3/4.7/5.5/6.3/7.1/7.9 4.8/5.2/5.6/6.4/7.2/8/8.8 5/5.4/5.8/6.6/
7.4/8.2/9

Standard configuration:
-GSK controller
-Manual chuck
-4 station tool post
-Manual tailstock

Optional configuration:
-SIEMENS 808D ADVANCED/FANUC 0I TF controller
-Hydraulic chuck
-6/8 station tool turret
-Hydraulic tailstock
